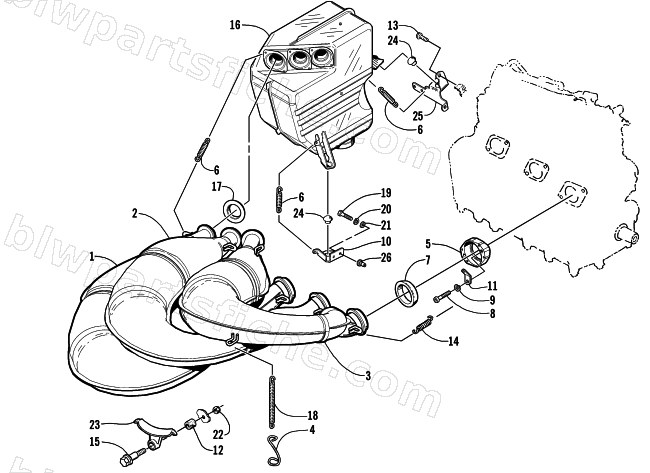

2001 Arctic Cat ZRT 800 LE — EXHAUST ASSEMBLY
2001 ZRT 800 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-339 | CHAMBER, EXP (800)MAG-FAB | 1 | $1,020.95 | |
| 2 | 0712-340 | CHAMBER, EXP-CEN-FAB (800) | 1 | $955.95 | |
| 3 | 0712-341 | CHAMBER, EXP-PTO-FAB (800) | 1 | $743.95 | |
| 4 | 0712-913 | BRKT,WIREFORM-EXP. CHAMBER-PTD BLK | 1 | $6.47 | |
| 5 | 1612-328 | MANIFOLD, EXH | 1 | $64.95 | |
| 6 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 7 | 0612-667 | GASKET,EXHAUST-HEADER JOINT-2.000 DIA | 1 | $28.95 | |
| 9 | 0623-710 | WASHER,LOCK HI-COLLAR METRIC | 1 | $0.40 | |
| 10 | 0612-963 | BRKT,RESONATOR MTG -CHASSIS | 1 | $62.95 | |
| 11 | 1606-635 | TAB, HOOD CABLE | 1 | $5.78 | |
| 12 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 13 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 14 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 15 | 0623-856 | SCREW, HEX HEAD SHOULDER-1/4-20 | 1 | $5.95 | |
| 16 | 0712-397 | RESONATOR WELD'T ( 1/4 WAVE ) | 1 | $743.95 | |
| 17 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 18 | 0123-468 | SPRING,EXTENSION | 1 | $25.95 | |
| 19 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 20 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0712-686 | BRKT,MTG- EXP CHAMBER - WELD,T | 1 | $29.95 | |
| 24 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 25 | 0612-962 | BRKT,RESONATOR MTG - DROPCASE | 1 | $125.95 | |
| 26 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
