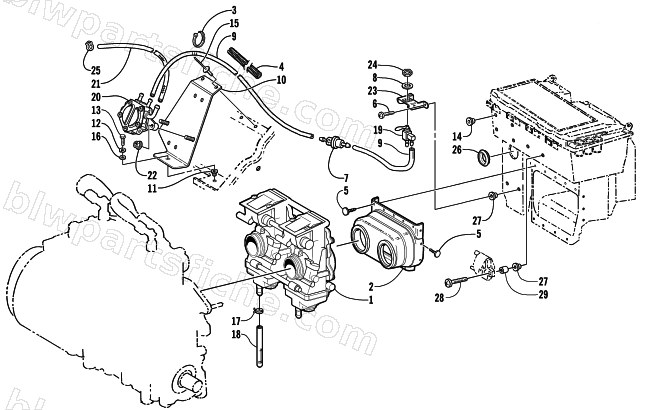

2001 Arctic Cat ZR 600 VEV — CARBURETOR AND FUEL PUMP ASSEMBLY
2001 ZR 600 VEV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-071 | CARB,TM38-B305 | 1 | $1,303.95 | |
| 2 | 1670-375 | BOOT, AIR SILENCER | 1 | $114.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 6 | 0623-836 | SCREW,MACH-PHPNH-10-32X1/2 W/SEMS L | 1 | $0.25 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0770-492 | PLATE, MTG,FUEL PUMP | 1 | $24.95 | |
| 11 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 12 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 13 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 14 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 18 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 19 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 20 | 1670-064 | PUMP, FUEL (DF62-719) | 1 | $62.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 26 | 2606-062 | PLUG, CAP,1 1/2 | 1 | $3.02 | |
| 27 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 28 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 29 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 |
