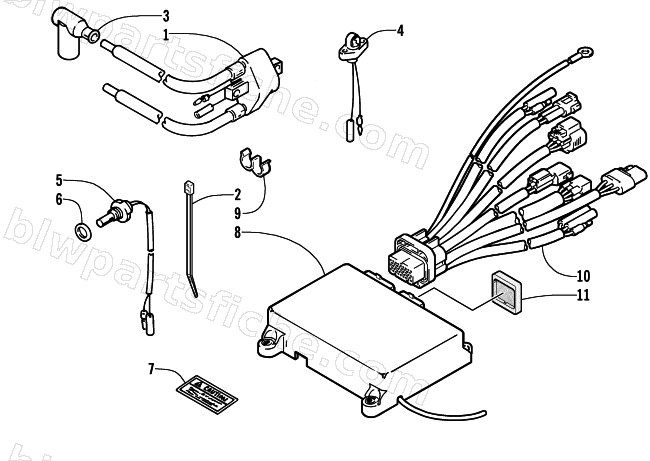

2001 Arctic Cat ZR 500 EFI — ELECTRICAL
2001 ZR 500 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-381 | COIL ASSY, IGNITION | 1 | $244.95 | |
| 2 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 7 | 2611-755 | DECAL,CAUTION-HOT SURFACE | 1 | $17.95 | |
| 8 | 3005-763 | ECU, KEFI GAS- CIRCLE 2001 | 1 | $1,749.59 | |
| 8 | 3005-764 | ECU, KEFI GAS - SQUARE 2001 | 1 | $2,164.29 | |
| 8 | 3005-765 | ECU, KEFI GAS-TRIANGLE 2001 | 1 | $1,749.59 | |
| 9 | 3005-387 | CLIP | 1 | $4.40 | |
| 10 | 3005-906 | HARNESS, MAIN CONTROLLER | 1 | $277.95 | |
| 11 | 3005-908 | COVER, PORT | 1 | $27.95 |
