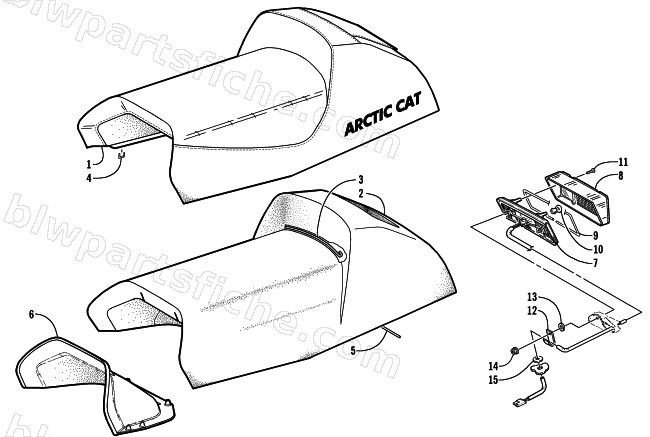

2001 Arctic Cat ZR 500 EFI (ESR) — SEAT AND TAILLIGHT ASSEMBLY
2001 ZR 500 EFI (ESR)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-980 | SEAT, ASSY ZL EFI/ESR | 1 | $948.95 | |
| 1 | 1706-306 | COVER, SEAT W/DECAL -'01 ZL'S-SILVER | 1 | $522.95 | |
| 2 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 3 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 7 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 8 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 9 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 |
