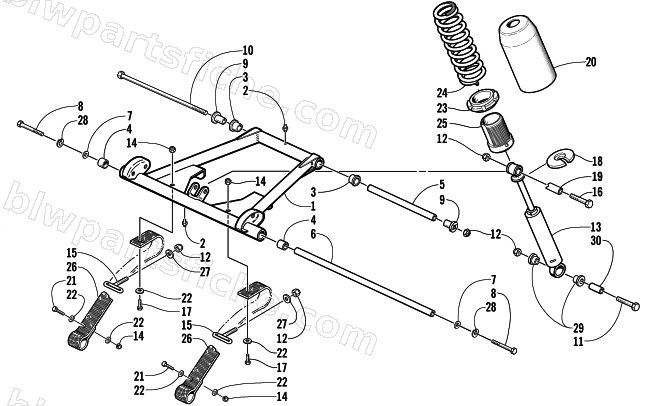

2001 Arctic Cat ZR 500 EFI (ESR) — REAR SUSPENSION FRONT ARM ASSEMBLY
2001 ZR 500 EFI (ESR)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-628 | ARM,FRONT-FABR(BLK) | 1 | $248.95 | |
| 2 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 6 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 7 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 8 | 8012-224 | SCREW,CAP-HHNLP 3/8-16X1.25 G5 Z&Y | 1 | $12.35 | |
| 9 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 10 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 11 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 19 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 20 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 23 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 24 | 1603-018 | SPRING,COMPRESSION - 90#-PTD BLK | 1 | $66.95 | |
| 25 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 26 | 1604-366 | STRAP,LIMITER-FRONT ARM (17.25") | 1 | $22.01 | |
| 27 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 28 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 29 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 30 | 1604-329 | AXLE,SHOCK PIVOT-98EXT | 1 | $39.95 |
