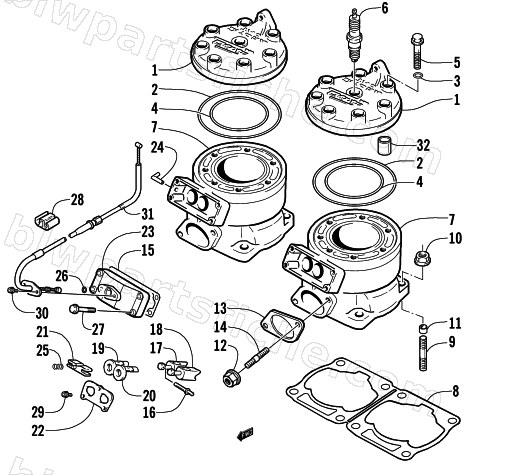

2001 Arctic Cat ZR 440 SNO PRO (SNO-CROSS - ) — CYLINDER AND HEAD ASSEMBLY
2001 ZR 440 SNO PRO (SNO-CROSS - )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-804 | HEAD | 1 | $383.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-802 | CYLINDER ( 440 L/C SNO PRO ) | 1 | $1,382.95 | |
| 8 | 3004-952 | GASKET, CYLINDER | 1 | $45.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 15 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 16 | 3005-284 | PIN,EXH.VALVE | 1 | $42.95 | |
| 17 | 3005-717 | VALVE,EXHAUST RH | 1 | $270.95 | |
| 18 | 3005-718 | VALVE,EXHAUST LH | 1 | $299.95 | |
| 19 | 3005-719 | GUIDE, EXHAUST VALVE RH | 1 | $238.95 | |
| 20 | 3005-720 | GUIDE, EXHAUST VALVE LH | 1 | $238.95 | |
| 21 | 3005-655 | STOPPER,EXHAUST VALVE | 1 | $53.95 | |
| 22 | 3005-585 | PLATE, GUIDE | 1 | $16.49 | |
| 23 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 24 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 25 | 3005-736 | SPRING | 1 | $6.34 | |
| 26 | 3005-651 | O RING,D:1.9,ID:5.7 | 1 | $3.95 | |
| 27 | 3007-381 | BOLT | 1 | $3.16 | |
| 28 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 29 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 30 | 3007-433 | BOLT | 1 | $3.16 | |
| 31 | 3005-910 | CABLE, EXHAUST VALVE | 1 | $113.95 | |
| 32 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 |
