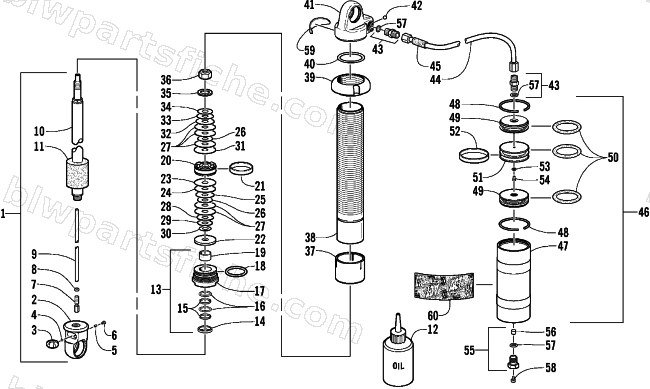

2001 Arctic Cat ZR 440 SNO PRO (SNO-CROSS) — FRONT SUSPENSION SHOCK ABSORBER
2001 ZR 440 SNO PRO (SNO-CROSS)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0703-788 | SHOCK, SKI,CLICKER-RH(SNO CROSS) | 1 | $1,498.95 | |
| 0 | 0703-789 | SHOCK, SKI,CLICKER-LH(SNO CROSS) | 1 | $1,750.95 | |
| 1 | 0703-918 | SHAFT,CHROME-ASSY | 1 | $1,818.95 | |
| 2 | 1603-532 | TOP EYE | 1 | $483.95 | |
| 3 | 1604-868 | KNOB,REBOUND AJDUSTER | 1 | $62.95 | |
| 4 | 1604-872 | BALL-ST ST-3.00 | 1 | $1.95 | |
| 5 | 1604-873 | SLUG,SILICONE | 1 | $2.95 | |
| 6 | 1604-871 | SCREW,GRUB-ST ST-M4X0.7X3.0LG | 1 | $0.95 | |
| 7 | 1604-870 | ADJUSTER,REBOUND | 1 | $105.95 | |
| 8 | 1604-869 | O-RING,REBOUND ADJUSTER-DRV0103 | 1 | $2.95 | |
| 9 | 1603-535 | ADJUSTER,ROD-176.50 D.A.L. | 1 | $38.95 | |
| 10 | 1603-534 | SHAFT,CHROME-16.00X204.00 | 1 | $882.95 | |
| 11 | 1603-533 | BUMPER,JOUNCE | 1 | $121.95 | |
| 12 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 13 | 0704-664 | COVER, SLIDING-ASSY | 1 | $334.95 | |
| 14 | 1604-882 | SEAL,SCRAPER | 1 | $36.95 | |
| 15 | 1604-884 | O-RING,STEP SEAL-DRV0017 | 1 | $2.95 | |
| 16 | 1604-883 | SEAL,STEP | 1 | $52.95 | |
| 18 | 1604-881 | O-RING,COVER-DRV216 | 1 | $21.95 | |
| 19 | 1604-885 | BUSHING-16.00 X 10.00 | 1 | $20.63 | |
| 20 | 1604-934 | PISTON,35MM-2X0.050 BLEEDS | 1 | $314.95 | |
| 21 | 1604-888 | SLYDRING-35.00 | 1 | $63.95 | |
| 22 | 1604-886 | PLATE,STOP-33.00 X 3.00 | 1 | $61.95 | |
| 23 | 3603-078 | VALVE,SHOCK-33MM DIA X 0.30MM | 1 | $23.39 | |
| 24 | 3603-077 | VALVE,SHOCK-31MM DIA X 0.30MM | 1 | $23.39 | |
| 25 | 3603-045 | VALVE,SHOCK-28MM DIA X 0.15MM | 1 | $23.39 | |
| 26 | 3603-042 | VALVE,SHOCK-22MM DIA X 0.15MM | 1 | $22.95 | |
| 27 | 3603-057 | VALVE,SHOCK-31MM DIA X 0.20MM | 1 | $26.95 | |
| 28 | 3603-055 | VALVE,SHOCK-28MM DIA X 0.20MM | 1 | $23.39 | |
| 29 | 3603-054 | VALVE,SHOCK-26MM DIA X 0.20MM | 1 | $23.39 | |
| 30 | 3603-060 | VALVE,SHOCK-18MM DIA X 0.25MM | 1 | $23.39 | |
| 31 | 3603-068 | VALVE,SHOCK-33MM DIA X 0.25MM | 1 | $26.95 | |
| 32 | 3603-075 | VALVE,SHOCK-28MM DIA X 0.30MM | 1 | $24.77 | |
| 33 | 3603-074 | VALVE,SHOCK-26MM DIA X 0.30MM | 1 | $24.77 | |
| 34 | 3603-073 | VALVE,SHOCK-24MM DIA X 0.30MM | 1 | $24.77 | |
| 35 | 1604-968 | PLATE,TOP-22.0X10.0X2.0 THK | 1 | $51.95 | |
| 36 | 1604-890 | NUT, PISTON | 1 | $15.11 | |
| 37 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 38 | 1603-537 | TUBE | 1 | $423.95 | |
| 39 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 40 | 1604-892 | O-RING,STUDCAP/TUBE-DRV0222 | 1 | $15.11 | |
| 41 | 1603-540 | STUDCAP | 1 | $437.95 | |
| 41 | 1603-541 | STUDCAP | 1 | $467.95 | |
| 43 | 1603-542 | CONNECTOR, 7/16-20 X 1/2-20 W/37 DEG FLA | 1 | $51.95 | |
| 44 | 1603-543 | HOSE,PARKER-F919-0606-5-5-5-11.0" | 1 | $147.95 | |
| 45 | 1604-928 | HEAT SHRINK-ATUM-1/2"ID X 2.0" | 1 | $17.87 | |
| 46 | 0704-654 | RESERVOIR,ASSY | 1 | $838.95 | |
| 47 | 1603-545 | BODY,RESERVOIR-120.65 LG | 1 | $241.95 | |
| 48 | 1603-547 | CIRCLIP-50.25X1.63 | 1 | $37.95 | |
| 49 | 1603-548 | COVER,RESERVOIR | 1 | $121.95 | |
| 50 | 1603-549 | O-RING,RESERVOIR-DRV0324 | 1 | $34.95 | |
| 51 | 1603-551 | PISTON,RESERVOIR | 1 | $222.95 | |
| 52 | 1603-550 | SLYDRING-45.00 | 1 | $28.95 | |
| 53 | 1603-552 | SEAL,SELF CENTERING DOWTY-M3 | 1 | $6.34 | |
| 54 | 1603-553 | SHCS, ST ST-M3X0.5 X 5.0 | 1 | $1.95 | |
| 55 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 57 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 58 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 59 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 60 | 4611-261 | DECAL, ACT (SHEET) | 1 | $3.44 |
