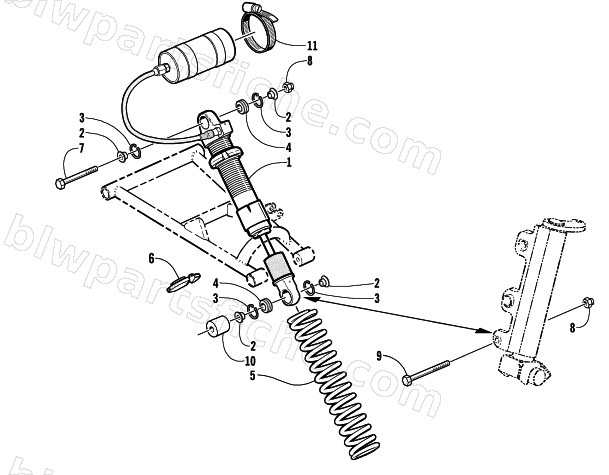

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - ) — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY - )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-788 | SHOCK, SKI,CLICKER-RH(SNO CROSS) | 1 | $1,498.95 | |
| 1 | 0703-789 | SHOCK, SKI,CLICKER-LH(SNO CROSS) | 1 | $1,750.95 | |
| 2 | 1603-423 | SPACER,SS SPHERICAL BEARING-SKI | 1 | $19.25 | |
| 3 | 0623-951 | RING,INTL RTNG-1.00 DIA | 1 | $6.20 | |
| 4 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 5 | 0703-744 | SPRING, SHOCK-SKI-GRN use1703-441BLK | 1 | $90.95 | |
| 6 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 11 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 |
