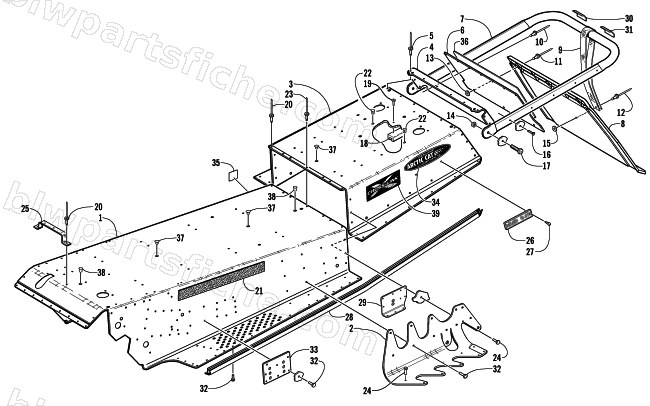

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — TUNNEL AND REAR BUMPER
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-718 | TUNNEL ASSY-PTD BLK | 1 | $789.95 | |
| 2 | 1706-926 | BRKT,REAR SUSP MTG-RH PTD BLK | 1 | $74.95 | |
| 2 | 1706-927 | BRKT,REAR SUSP MTG-LH PTD BLK | 1 | $74.95 | |
| 3 | 2706-139 | EXTENSION,TUNNEL-PTD BLK | 1 | $333.95 | |
| 4 | 1606-662 | PLATE,END-REAR TUN(99 PRO | 1 | $256.95 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 1606-713 | EXTENSION,SNOWFLAP | 1 | $27.95 | |
| 7 | 2706-048 | BUMPER,REAR-PTD BLK | 1 | $316.95 | |
| 8 | 1706-005 | SNOWFLAP,30 DEG.FLIP UP WHITE-MACH | 1 | $53.95 | |
| 9 | 1606-712 | STRAP,SNOWFLAP | 1 | $7.95 | |
| 10 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 11 | 8060-808 | RIVET,BLIND-DH AA86 PL | 1 | $1.37 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 0623-759 | WASHER,FLAT-.257 X .50 X .060 | 1 | $0.45 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 16 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 17 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 18 | 2606-302 | PROTECTOR,TUNNEL-9.5" | 1 | $16.95 | |
| 18 | 2606-303 | PROTECTOR,TUNNEL-54" | 1 | $44.95 | |
| 19 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 1706-162 | VELCRO,HOOK-1" W/O STRIP-4" | 1 | $3.44 | |
| 23 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 24 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 25 | 0707-710 | BRKT,HOSE HOLDDOWN-PTD BLK | 1 | $17.87 | |
| 26 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 2706-160 | ROLL,TUNNEL-RH-PTD BLK | 1 | $87.95 | |
| 28 | 2706-161 | ROLL,TUNNEL-LH-PTD BLK | 1 | $85.95 | |
| 29 | 2706-124 | PLATE,BACKING-RH-REAR SUSP-PTD BLK | 1 | $10.97 | |
| 29 | 2706-125 | PLATE,BACKING-LH-REAR SUSP-PTD BLK | 1 | $11.95 | |
| 30 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 31 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 32 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 33 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 34 | 3611-888 | DECAL, A/C GENUINE LUBRICANTS | 1 | $16.95 | |
| 35 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 36 | 4611-090 | DECAL,SNOWFLAP-"SNO PRO" | 1 | $65.95 | |
| 38 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 39 | 4611-369 | DECAL, TUNNEL-CROSSLINK | 1 | $66.95 |
