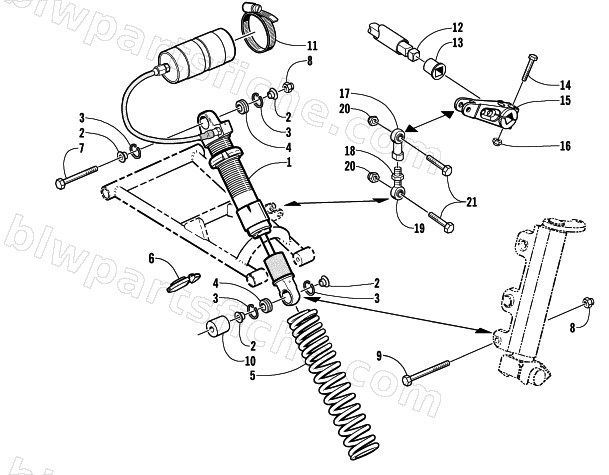

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — SHOCK ABSORBER AND SWAY BAR ASSEMBLY (Cross Country)
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-838 | SHOCK, SKI-CLICKER-RH(CROSS COUNTRY) | 1 | $1,208.95 | |
| 1 | 0703-839 | SHOCK, SKI-CLICKER-LH(CROSS COUNTRY) | 1 | $1,948.95 | |
| 2 | 1603-423 | SPACER,SS SPHERICAL BEARING-SKI | 1 | $19.25 | |
| 3 | 0623-951 | RING,INTL RTNG-1.00 DIA | 1 | $6.20 | |
| 4 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 5 | 1603-392 | SPRING,COMP-FRT-GRN | 1 | $74.95 | |
| 6 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 11 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 12 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 13 | 1603-211 | BEARING,SWAY BAR-(THIN WALL TUBE) | 1 | $4.40 | |
| 14 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 15 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 16 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 17 | 0605-345 | BALL JOINT, TIE ROD 3/8 -24 FEMALE | 1 | $58.95 | |
| 18 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 19 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 20 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 21 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 |
