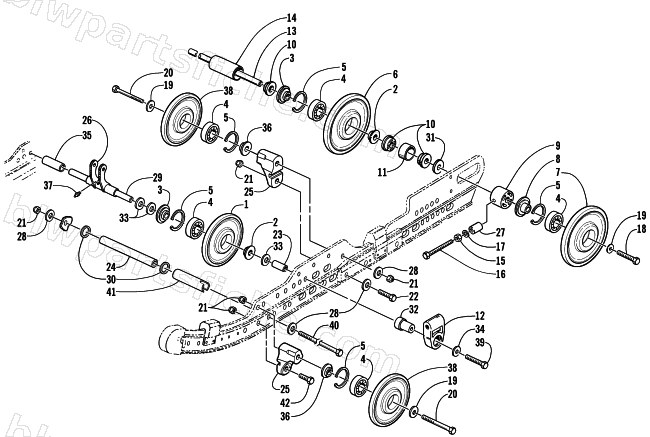

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — IDLER WHEEL ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-684 | WHEEL,IDLER-5.63(2-5/8DIA INSR) | 1 | $53.95 | |
| 2 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 3 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 4 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 5 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 6 | 1604-685 | WHEEL,IDL-6.38(2-5/8DIA INSR) | 1 | $53.95 | |
| 7 | 0604-969 | WHEEL,IDLER-OUTER | 1 | $53.95 | |
| 8 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 9 | 0604-936 | BUSHING,REAR WHEEL ADJUSTER | 1 | $10.97 | |
| 10 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 11 | 0604-937 | SPACER,REAR WHEEL -OUTER | 1 | $12.35 | |
| 12 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 13 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 14 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 15 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 16 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 17 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 18 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 19 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 20 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 23 | 1604-213 | SPACER,ALUM-THK WALL 1.410 | 1 | $33.95 | |
| 24 | 1604-792 | AXLE, STEEL-7/8 X 3/8 X 8.750 ZY | 1 | $58.95 | |
| 25 | 1604-434 | BLOCK,MTG-IDLER WHEEL (RH) -MACH | 1 | $34.95 | |
| 25 | 1604-435 | BLOCK,MTG-IDLER WHEEL (LH) -MACH | 1 | $34.95 | |
| 26 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 27 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 28 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 29 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 30 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 31 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 32 | 0604-912 | BLOCK,SLIDE-SPRING-MTG | 1 | $27.95 | |
| 33 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 34 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 35 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 36 | 1604-501 | INSERT,WHEEL-MTG BLOCK(99 PRO) | 1 | $13.95 | |
| 37 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 38 | 1604-690 | WHEEL,IDL-5.63 W/1" ID(NO INSR) | 1 | $53.95 | |
| 39 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 40 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 41 | 1604-793 | SPACER,FRONT ARM SHOCK | 1 | $29.95 | |
| 42 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 |
