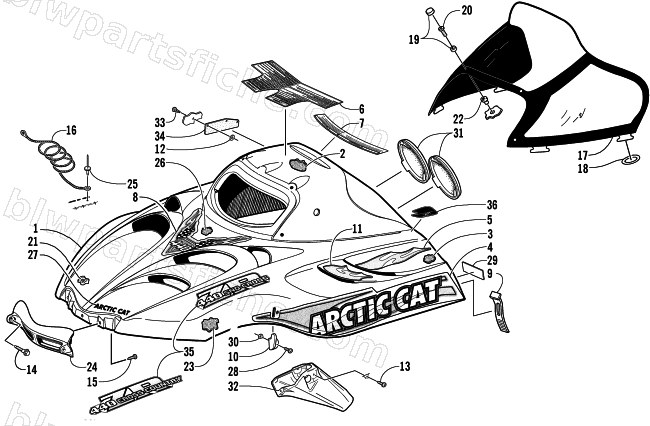

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — HOOD AND WINDSHIELD ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-011 | HOOD, W/O,DECAL | 1 | $1,056.95 | |
| 1 | 0718-993 | HOOD W/DECALS-01 BLK MAGIC | 1 | $1,236.95 | |
| 1 | 1718-009 | HOOD W/DECALS-01 ZR SNO PRO | 1 | $1,236.95 | |
| 2 | 0617-403 | FOAM, HOOD,REAR | 1 | $61.95 | |
| 3 | 0717-168 | FOAM, HOOD-UPPER RH | 1 | $15.11 | |
| 4 | 4611-258 | DECAL, HOOD-LWR-RH | 1 | $46.95 | |
| 4 | 4611-259 | DECAL ,HOOD-LWR-LH | 1 | $50.95 | |
| 5 | 4611-082 | DECAL,HOOD-VENT-RR RH | 1 | $19.95 | |
| 5 | 4611-083 | DECAL,HOOD-VENT-RR LH | 1 | $19.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 8 | 4611-079 | DECAL,HOOD-CENTER | 1 | $44.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 10 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 11 | 4611-084 | DECAL,HOOD-VENT-FRT RH | 1 | $20.63 | |
| 11 | 4611-085 | DECAL,HOOD-VENT-FRT LH | 1 | $20.63 | |
| 12 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 | |
| 13 | 0623-311 | SCREW,SELF TAP-HWH #8X3/8 TYPE A | 1 | $0.65 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 2606-272 | CABLE, HOOD,29" | 1 | $16.95 | |
| 17 | 1606-996 | WINDSHIELD, FORMED | 1 | $149.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0717-156 | FOAM,HOOD-REAR RH | 1 | $8.95 | |
| 24 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 25 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 26 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 27 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 28 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 | |
| 29 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 30 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 31 | 2606-069 | PLUG, GAUGE HOLE | 1 | $5.37 | |
| 32 | 2606-011 | DUCT,BRAKE-HOOD | 1 | $72.95 | |
| 33 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 34 | 2606-137 | INTAKE, AIR,CLOSEOFF | 1 | $12.35 | |
| 35 | 4611-078 | DECAL,HOOD-"SNO CROSS" | 1 | $65.95 | |
| 35 | 4611-300 | DECAL,HOOD-"CROSS COUNTRY" | 1 | $89.95 | |
| 36 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 36 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 |
