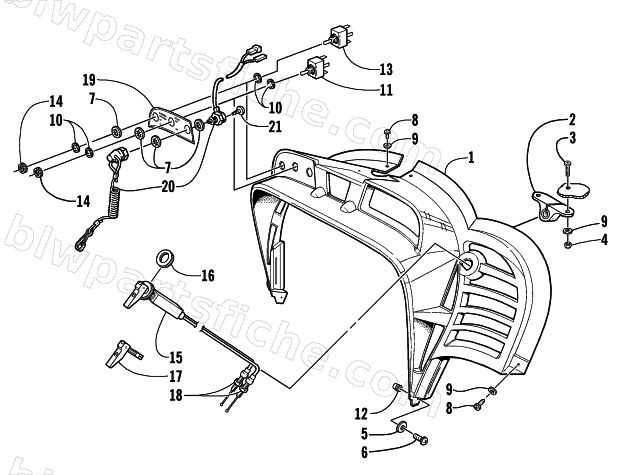

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — CONSOLE AND SWITCH ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-022 | CONSOLE, NO KEY-W/TETHER | 1 | $243.95 | |
| 2 | 1706-193 | BUSHING,RECOIL-MACH | 1 | $20.95 | |
| 3 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 4 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 11 | 0609-233 | SWITCH,HIGH/LOW BEAM | 1 | $25.95 | |
| 12 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 13 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 14 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 15 | 0687-056 | CABLE,CHOKE-TWIN | 1 | $109.95 | |
| 16 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 17 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 18 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 19 | 3611-886 | PLATE, CONSOLE,SWITCH | 1 | $27.95 | |
| 20 | 0630-077 | SWITCH,TETHER-N.O. ASSY. | 1 | $70.95 | |
| 21 | 0623-338 | SCREW,SELF TAP-PNHD #4 X 3/16 TYPE AB | 1 | $0.26 |
