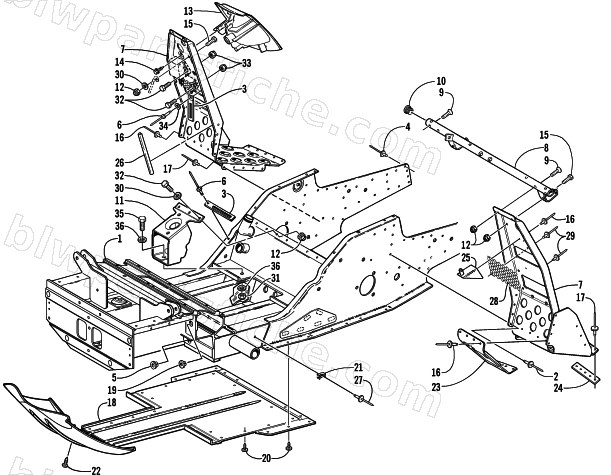

2001 Arctic Cat ZL 800 (ESR ILLUSION) — FRONT FRAME AND FOOTREST ASSEMBLY
2001 ZL 800 (ESR ILLUSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-578 | CHASSIS, FR END 01 ZL 800 | 1 | $1,438.95 | |
| 2 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 3 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 7 | 1706-358 | FOOTREST, RH - PAINTED BLK | 1 | $126.95 | |
| 7 | 1706-359 | FOOTREST, LH - PAINTED BLK | 1 | $132.95 | |
| 8 | 0705-228 | SUPPORT,STEERING-ASSY | 1 | $90.95 | |
| 9 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 10 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 11 | 0708-391 | BRKT, ENG MTG-PTD BLK | 1 | $161.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 1706-099 | CUP,RECOIL ROPE W/REV. & ALARM HOLES | 1 | $37.95 | |
| 14 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 15 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 18 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 19 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 1606-542 | PLATE, BACKING-FOOTREST-RH | 1 | $19.25 | |
| 23 | 1606-543 | PLATE, BACKING-FOOTREST-LH | 1 | $19.25 | |
| 24 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 25 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 26 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 27 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 28 | 2706-133 | SCREEN,GUARD-PTD BLK | 1 | $12.95 | |
| 29 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 30 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 31 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 32 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 33 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 35 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 36 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 |
