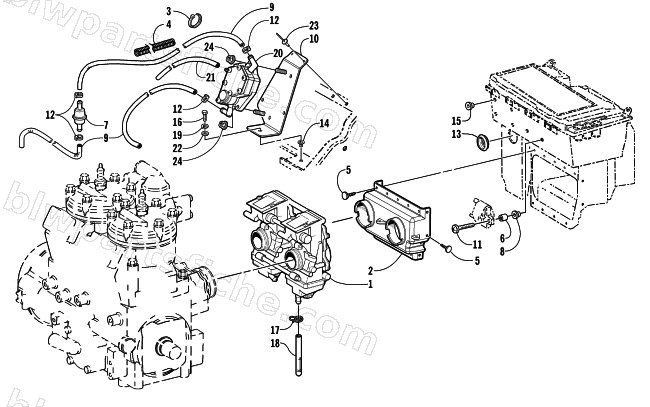

2001 Arctic Cat ZL 800 (ESR ILLUSION) — CARBURETOR AND FUEL PUMP ASSEMBLY
2001 ZL 800 (ESR ILLUSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-137 | CARB,TM40-B121-RACK STYLE | 1 | $1,415.95 | |
| 2 | 1670-206 | BOOT, CARB-2001 800 | 1 | $72.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 6 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 7 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 8 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 0770-497 | PLATE,MTG-FUEL PUMP-ASSY | 1 | $20.95 | |
| 11 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 2606-062 | PLUG, CAP,1 1/2 | 1 | $3.02 | |
| 14 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 15 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 16 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 17 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 18 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 19 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 24 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 |
