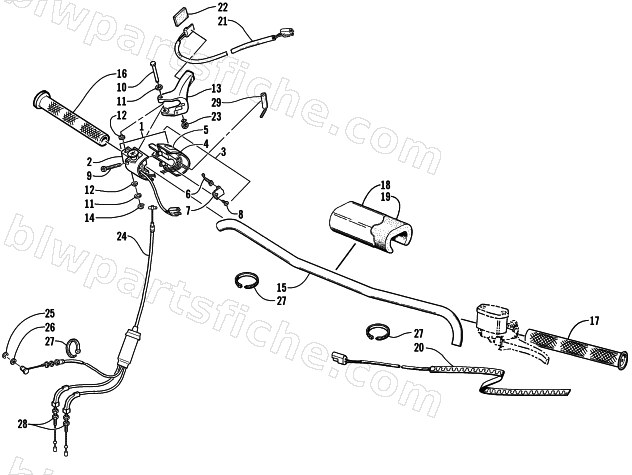

HANDLEBAR AND CONTROLS
2001 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-510 | CONTROL,TH-SPLIT 2W W/O TW | 1 | $177.95 | |
| 5 | 0609-311 | PLATE, SWITCH-BLANK | 1 | $8.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 10 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 11 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 12 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 13 | 0609-258 | LEVER, TH-34MM SC GRN | 1 | $39.95 | |
| 14 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 15 | 0705-371 | HANDLEBAR,GRN (W/ HOOKS) | 1 | $106.95 | |
| 16 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 17 | 1606-443 | GRIP,HANDLEBAR-LH-8.75" | 1 | $21.95 | |
| 18 | 0705-379 | WRAP,HANDLEBAR PAD-ASSY(2001 PRO) | 1 | $30.95 | |
| 19 | 0619-640 | FOAM,HANDLEBAR PAD-CTL 5.25" | 1 | $18.95 | |
| 20 | 0609-420 | ELEMENT, HW-STRIP W/ #21 | 1 | $106.95 | |
| 20 | 0609-465 | ELEMENT, HW-LH ZRV STRIP W/ #21 | 1 | $106.95 | |
| 22 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 23 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 24 | 0687-059 | CABLE,THROTTLE-DUAL VM34 | 1 | $128.95 | |
| 25 | 0124-057 | E-RING | 1 | $1.64 | |
| 26 | 0124-056 | WASHER | 1 | $13.73 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 29 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 |
