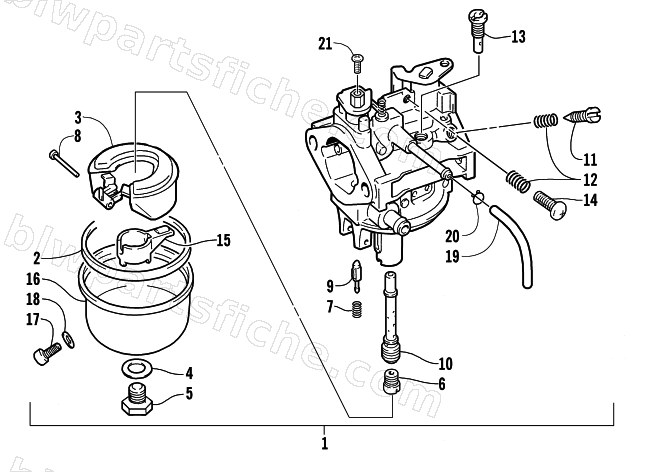

2001 Arctic Cat Z 120 — CARBURETOR
2001 Z 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0694-028 | CARBURETOR ASSY | 1 | $436.95 | |
| 2 | 0691-423 | GASKET | 1 | $19.25 | |
| 3 | 0691-424 | FLOAT | 1 | $38.95 | |
| 4 | 0691-422 | GASKET | 1 | $5.95 | |
| 5 | 1691-147 | KIT,DRAIN PLUG | 1 | $15.11 | |
| 6 | 0694-032 | MAIN JET (77.5) | 1 | $19.25 | |
| 7 | 0691-428 | SPRING | 1 | $6.75 | |
| 8 | 0693-536 | PIN, FLOAT | 1 | $13.73 | |
| 10 | 0693-056 | NOZZLE | 1 | $53.95 | |
| 11 | 0691-102 | ADJUSTER | 1 | $13.73 | |
| 12 | 0691-272 | SPRING, THROTTLE SCREW | 1 | $12.35 | |
| 13 | 0694-033 | PILOT JET (42.5) | 1 | $24.77 | |
| 13 | 0693-538 | JET, PILOT | 1 | $32.95 | |
| 13 | 6506-261 | JET, PILOT- 45 | 1 | $16.49 | |
| 13 | 6506-262 | JET, PILOT- 47.5 | 1 | $16.49 | |
| 13 | 6506-263 | JET, PILOT- 50 | 1 | $11.95 | |
| 14 | 0693-315 | SCREW,M4X12 | 1 | $1.64 | |
| 15 | 0691-426 | RING | 1 | $16.49 | |
| 16 | 0693-283 | CHAMBER, FLOAT | 1 | $41.95 | |
| 17 | 0693-284 | PLUG, DRAIN | 1 | $10.95 | |
| 18 | 0693-285 | GASKET | 1 | $4.40 | |
| 19 | 0694-012 | HOSE | 1 | $20.63 | |
| 20 | 0694-011 | CLIP | 1 | $14.95 | |
| 21 | 0694-025 | SCREW | 1 | $1.78 |
