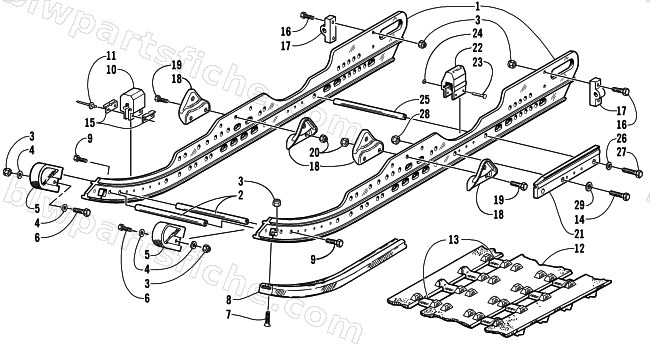

2001 Arctic Cat THUNDERCAT () — SLIDE RAIL AND TRACK ASSEMBLY
2001 THUNDERCAT ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-736 | RAIL, 121"-FORMED-STAMPED-PTD BLK (-050) | 1 | $187.95 | |
| 2 | 1604-737 | AXLE,CROSSBRACE-OD .625 X 8.75-PTD BLK | 1 | $30.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 1602-756 | TRACK,15 X121X.85-BUMP | 1 | $946.95 | |
| 12 | 2602-396 | TRACK,RIPSAW (NQ)-15X121X1.25" | 1 | $999.95 | |
| 13 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 14 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 0704-503 | ADJUSTER,TRACK-BLK | 1 | $26.95 | |
| 18 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 0704-550 | BRACE, RAIL-RH (BLACK, 2001 TC) | 1 | $40.95 | |
| 21 | 0704-551 | BRACE, RAIL-LH (BLACK, 2001 TC) | 1 | $39.95 | |
| 23 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 24 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 25 | 0704-501 | AXLE,ALUM.-BLK | 1 | $40.95 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 28 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 29 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
