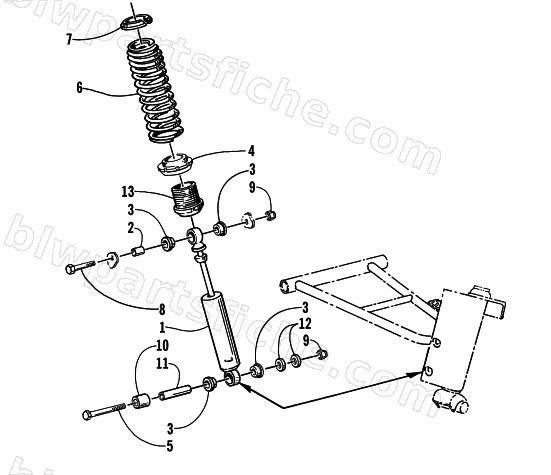

SHOCK ABSORBER ASSEMBLY
2001 PANTHER 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-174 | SHOCK,SKI | 1 | $244.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 5 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 6 | 0703-822 | SPRING, COMPRESSION-10.5"-110LBS-BLK | 1 | $67.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0603-835 | SPACER,SHOCK-MTG | 1 | $14.95 | |
| 11 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 12 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 13 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 |
