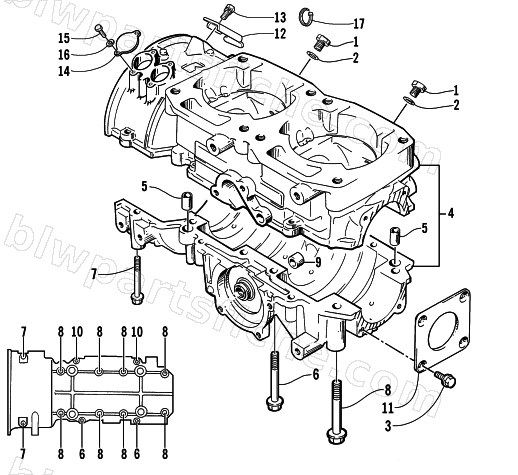

2001 Arctic Cat PANTERA 580 EFI — CRANKCASE ASSEMBLY
2001 PANTERA 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3007-392 | BOLT | 1 | $3.95 | |
| 4 | 3005-459 | CRANKCASE ASSY (580 L/C) | 1 | $1,470.95 | |
| 5 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 6 | 3004-442 | BOLT, 6X40 | 1 | $2.95 | |
| 7 | 3004-444 | BOLT, 8X65 | 1 | $5.95 | |
| 8 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 9 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 10 | 3004-880 | BOLT, 8X50 | 1 | $3.85 | |
| 11 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 | |
| 12 | 0608-117 | BRKT,GROUND WIRE-ENGINE | 1 | $13.95 | |
| 13 | 0145-105 | SCREW M6X14MM | 1 | $0.55 | |
| 14 | 3004-129 | PLATE,COVER-SENSOR | 1 | $5.95 | |
| 15 | 0623-352 | SCREW,CAP-HH 5MMX.8X12 CL8.8 Z&Y | 1 | $0.26 | |
| 16 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
