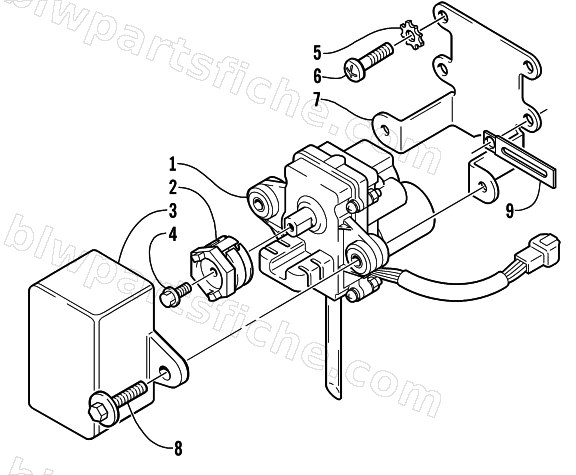

2001 Arctic Cat MOUNTAIN CAT 800 — SERVOMOTOR ASSEMBLY
2001 MOUNTAIN CAT 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-702 | MOTOR ASSY, EXHAUST VALVE | 1 | $726.95 | |
| 2 | 3005-661 | PULLEY,CONTROLLER | 1 | $70.95 | |
| 4 | 0693-368 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.16 | |
| 5 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 7 | 3005-750 | BRACKET, EXHAUST VALVE MOTOR | 1 | $43.95 | |
| 8 | 3005-650 | BOLT,6X25 | 1 | $3.44 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
