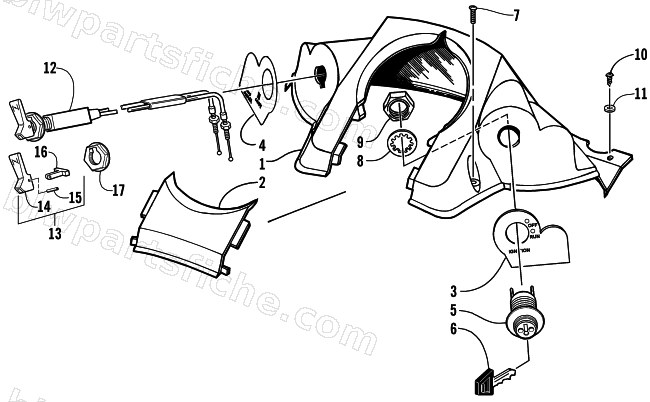

2001 Arctic Cat MOUNTAIN CAT 800 LE () — CONSOLE AND SWITCH ASSEMBLY
2001 MOUNTAIN CAT 800 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-231 | CONSOLE, CARB (800 LE) | 1 | $41.95 | |
| 1 | 2606-230 | CONSOLE, CARB | 1 | $39.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 2611-678 | DECAL,CONSOLE SWITCH-RH | 1 | $42.95 | |
| 4 | 2611-867 | DECAL,CONSOLE-LH (CHOKE) | 1 | $42.95 | |
| 5 | 0609-256 | SWITCH,IGNITION-NORM. OPEN | 1 | $71.95 | |
| 6 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 7 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 9 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 10 | 1604-432 | BRKT,RETAINER-EASY ADJ RESERVOIR | 1 | $30.95 | |
| 11 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 12 | 0687-136 | CABLE,CHOKE-LONG PULL TWIN | 1 | $109.95 | |
| 13 | 1639-835 | KIT, CHOKE LEVER/LONG PULL | 1 | $20.63 | |
| 17 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 18 | 0704-646 | ADJUSTER,FRT. ARM-EASY ADJUST,1.125 FLAT | 1 | $575.95 | |
| 19 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 1606-364 | BRKT,MTG-EASY ADJ. RESERVOIR ('98 440 ZR | 1 | $52.95 | |
| 22 | 1606-365 | PLATE,BACKING-EASY ADJ. MTG BRKT ('98 44 | 1 | $12.95 | |
| 23 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 24 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 25 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 26 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 |
