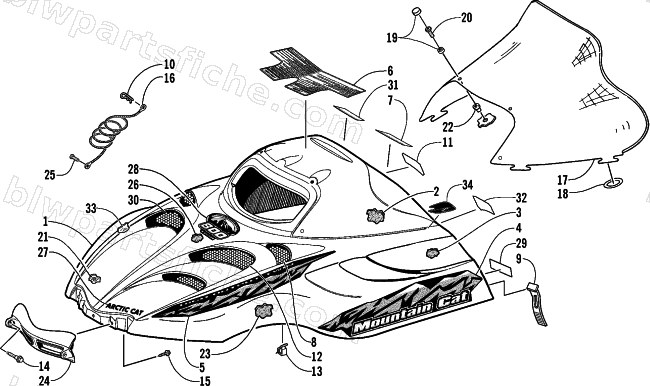

2001 Arctic Cat MOUNTAIN CAT 800 () — HOOD AND WINDSHIELD ASSEMBLY (LE)
2001 MOUNTAIN CAT 800 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-044 | HOOD, W/O DECAL-02 ZR 800 LE | 1 | $1,168.95 | |
| 1 | 0718-964 | HOOD W/DECALS-GRN-01 MC 800 LE | 1 | $1,374.95 | |
| 1 | 0718-944 | HOOD W/O DECALS-01 ZR | 1 | $1,229.95 | |
| 1 | 0718-990 | HOOD W/DECALS-BLK-800 LE | 1 | $1,374.95 | |
| 3 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 3 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 4 | 3611-960 | DECAL,HOOD-LOWER-RH | 1 | $72.95 | |
| 4 | 3611-961 | DECAL,HOOD-LOWER-LH | 1 | $70.95 | |
| 4 | 3611-890 | DECAL,HOOD-LOWER-RH | 1 | $70.95 | |
| 4 | 3611-891 | DECAL,HOOD-LOWER-LH | 1 | $70.95 | |
| 5 | 3611-962 | DECAL,HOOD-UPPER-RH | 1 | $72.95 | |
| 5 | 3611-963 | DECAL,HOOD-UPPER-LH | 1 | $72.95 | |
| 5 | 3611-892 | DECAL,HOOD-UPPER-RH | 1 | $70.95 | |
| 5 | 3611-893 | DECAL,HOOD-UPPER-LH | 1 | $70.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 3611-486 | DECAL,CAUTION-ENGINE & BATTERY-ENGLISH | 1 | $12.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 11 | 3611-489 | DECAL,CAUTION-FUEL-FRENCH | 1 | $13.95 | |
| 13 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 17 | 1606-696 | WINDSHIELD,FORMED-SMOKE(2000 ZR) | 1 | $165.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 23 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 24 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 26 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 27 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 27 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 28 | 3611-964 | DECAL,HOOD-CREST 800 | 1 | $40.95 | |
| 28 | 3611-896 | DECAL,HOOD-CREST 800 | 1 | $37.95 | |
| 29 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 31 | 3611-487 | DECAL,CAUTION-ENGINE & BATTERY-FRENCH | 1 | $13.95 | |
| 32 | 3611-488 | DECAL,CAUTION-FUEL-ENGLISH | 1 | $12.95 | |
| 33 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 34 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 34 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 |
