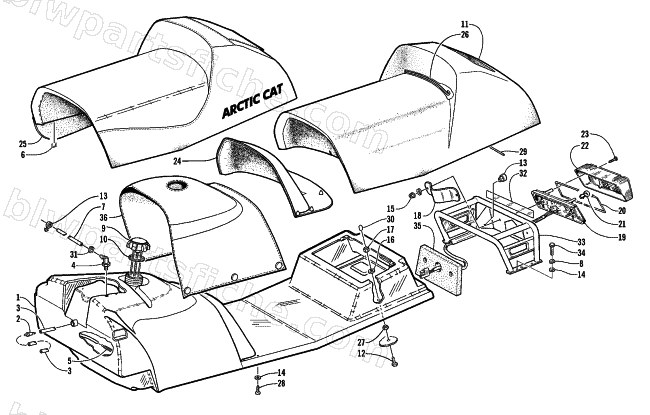

2001 Arctic Cat MOUNTAIN CAT 600 VEV — GAS TANK, RACK, SEAT, AND TAILLIGHT ASSEMBLY
2001 MOUNTAIN CAT 600 VEV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-936 | SEAT, ASSY (01) MTCAT | 1 | $683.95 | |
| 1 | 0770-486 | TANK, GAS-ASSY - 00 P/S | 1 | $428.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 8 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 9 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 0716-951 | FOAM,SEAT CUSHION (POWDER SPECIAL) | 1 | $189.95 | |
| 12 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 13 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 19 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 23 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 24 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 25 | 1706-121 | COVER, SEAT W/DECAL- '00 PWD SPC'S | 1 | $535.95 | |
| 26 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 27 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 3611-107 | DECAL,CAUTION-RACK | 1 | $20.95 | |
| 33 | 1706-115 | RACK,2000 MC-PTD BLACK | 1 | $154.95 | |
| 34 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 35 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 36 | 0705-351 | WRAP/PAD, GAS TANK 13 GAL | 1 | $58.95 |
