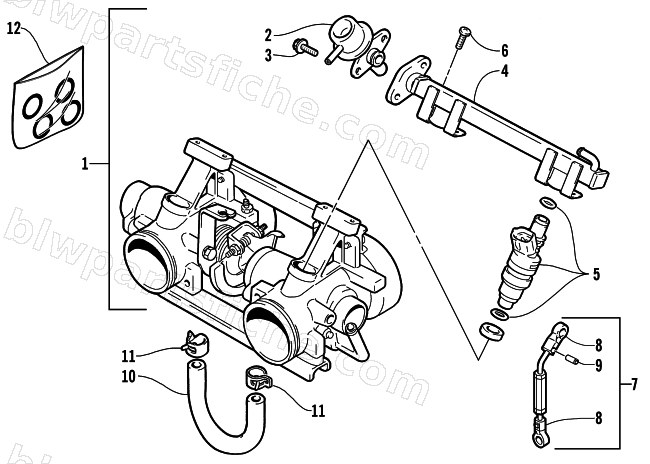

2001 Arctic Cat MOUNTAIN CAT 600 EFI LE () — THROTTLE BODY ASSEMBLY
2001 MOUNTAIN CAT 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-903 | THROTTLE BODY ASSY(CIRCLE) | 1 | $2,225.95 | |
| 1 | 3005-810 | THROTTLE BODY ASSY (SQUARE) | 1 | $2,225.95 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-691 | PIPE,DELIVERY | 1 | $752.95 | |
| 5 | 3005-811 | INJECTOR ASSY, FUEL(CIRCLE) | 1 | $674.95 | |
| 5 | 3005-812 | INJECTOR ASSY, FUEL SQUARE | 1 | $666.95 | |
| 5 | 3005-813 | INJECTOR ASSY, FUEL(TRIANGLE) | 1 | $666.95 | |
| 6 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 7 | 3005-693 | ROD,OIL PUMP CONTROL | 1 | $96.95 | |
| 9 | 3005-738 | PIN, SPRING | 1 | $5.95 | |
| 10 | 3005-103 | HOSE, WATER | 1 | $68.95 | |
| 11 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 12 | 3005-692 | O-RING SET | 1 | $118.95 |
