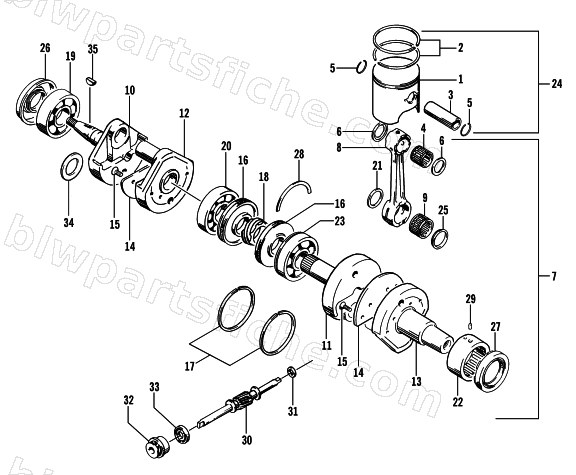

2001 Arctic Cat MOUNTAIN CAT 600 EFI LE () — PISTON AND CRANKSHAFT
2001 MOUNTAIN CAT 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3005-749 | RING ASSY, PISTON (600 EFI) | 1 | $112.95 | |
| 3 | 3008-509 | PIN, PISTON | 1 | $38.95 | |
| 4 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 5 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 6 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 7 | 3005-665 | CRANKSHAFT ASSY | 1 | $2,847.95 | |
| 8 | 3007-614 | CONNROD | 1 | $271.95 | |
| 9 | 3005-505 | BEARING,NEEDLE ROLLER,M27X34X20 | 1 | $112.95 | |
| 10 | 3005-495 | CRANKSHAFT, RH | 1 | $561.95 | |
| 11 | 3005-496 | CRANKSHAFT,M | 1 | $417.95 | |
| 12 | 3005-497 | WHEEL,CRANKSHAFT | 1 | $536.95 | |
| 13 | 3005-498 | CRANKSHAFT,LH | 1 | $501.95 | |
| 14 | 3005-500 | BALANCER, CRANKSHAFT | 1 | $57.95 | |
| 15 | 3007-440 | SCREW | 1 | $2.06 | |
| 16 | 3005-597 | RACE,MIDDLE CRANK SEAL | 1 | $82.95 | |
| 17 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 18 | 3005-362 | GEAR, OIL PUMP DRIVE | 1 | $193.95 | |
| 19 | 3005-507 | BEARING,ROLLER,4.2X19X7.5 | 1 | $348.95 | |
| 20 | 3005-503 | BEARING,BALL,M30X75X17 | 1 | $136.95 | |
| 21 | 3005-502 | WASHER,M27X33X1.5 | 1 | $5.92 | |
| 22 | 3003-805 | BEARING,CRANK-LH,ROLLER,M40X64X30 | 1 | $244.95 | |
| 23 | 3005-504 | BEARING,BALL,M30X75X17 | 1 | $149.95 | |
| 24 | 3005-748 | PISTON ASSY, ( 600X2 VEV ) | 1 | $227.95 | |
| 25 | 3005-494 | WASHER,CRANKPIN BEARING | 1 | $20.63 | |
| 26 | 3008-525 | SEAL, OIL,M30 | 1 | $73.95 | |
| 27 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 28 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 29 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 30 | 3005-319 | GEAR, OIL PUMP DRIVEN | 1 | $127.95 | |
| 31 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 32 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 33 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 34 | 3005-603 | WASHER,35MM | 1 | $4.26 | |
| 35 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
