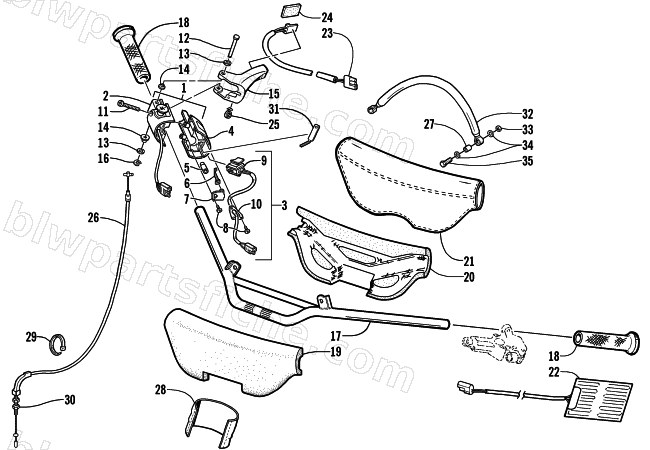

2001 Arctic Cat MOUNTAIN CAT 600 EFI LE () — HANDLEBAR AND CONTROLS
2001 MOUNTAIN CAT 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-482 | CONTROL,TH-SPLIT 3W W/ HI/LO | 1 | $166.95 | |
| 2 | 0609-493 | CONTROL,TH-STOP SWITCH HALF | 1 | $106.95 | |
| 3 | 0609-500 | CONTROL,TH-HALF ASSY HI/LO | 1 | $124.95 | |
| 4 | 0609-495 | CONTROL,TH-WARMER SW HALF HI/LO | 1 | $40.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-382 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $71.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-368 | LEVER, TH-35MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 1705-010 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 19 | 0605-416 | PAD, MTN HANDLEBAR - FNT - W/HOLES | 1 | $71.95 | |
| 20 | 0605-417 | PAD, MTN HANDLEBAR - REAR - W/HOLES | 1 | $71.95 | |
| 22 | 0609-375 | ELEMENT,HANDWARMER-HI/LOW(-553) | 1 | $92.95 | |
| 23 | 0609-373 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $60.95 | |
| 24 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 25 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 26 | 0687-120 | CABLE,THROTTLE-EFI W/O OIL | 1 | $66.95 | |
| 27 | 0623-811 | SPACER, 3/8 ID-1/2 OD | 1 | $4.82 | |
| 28 | 0705-350 | WRAP, STEERING POST | 1 | $14.95 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 31 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 32 | 0605-448 | STRAP, MTN FORMED - W/NYLON - BLK - PS | 1 | $127.95 | |
| 33 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 34 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 35 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 |
