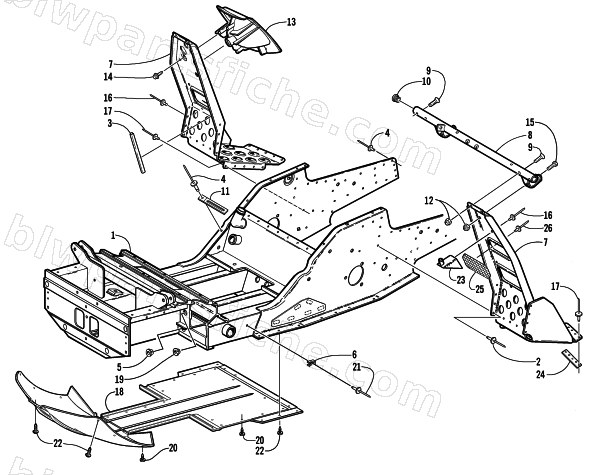

2001 Arctic Cat MOUNTAIN CAT 1000 () — FRONT FRAME AND FOOTREST ASSEMBLY
2001 MOUNTAIN CAT 1000 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-537 | CHASSIS, FR END - '01 M/C 1000 | 1 | $1,871.95 | |
| 2 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 3 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 7 | 2606-166 | FOOTREST, RH (UNPAINTED) | 1 | $89.95 | |
| 7 | 2606-167 | FOOTREST, LH (UNPAINTED) | 1 | $119.95 | |
| 8 | 0705-228 | SUPPORT,STEERING-ASSY | 1 | $90.95 | |
| 9 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 10 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 11 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 14 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 15 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 18 | 1606-708 | BELLY PAN - CENTER | 1 | $165.95 | |
| 19 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 24 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 25 | 2706-133 | SCREEN,GUARD-PTD BLK | 1 | $12.95 | |
| 26 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
