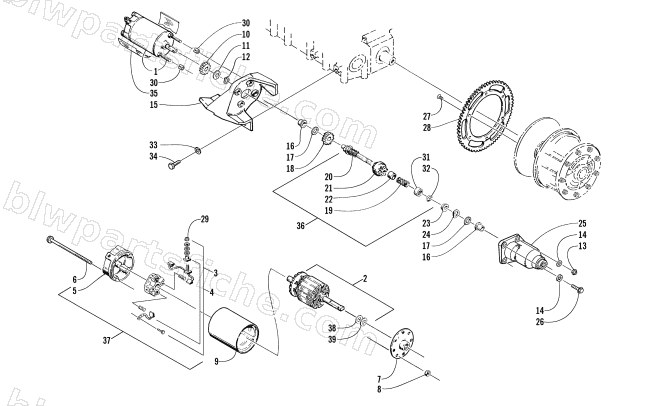

ELECTRIC START - STARTER MOTOR ASSEMBLY (OPTIONAL)
2001 MOUNTAIN CAT 1000 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0645-578 | MOTOR,STARTER | 1 | $532.95 | |
| 2 | 0645-146 | ARMATURE ASS'Y | 1 | $277.95 | |
| 4 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 6 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 7 | 0745-367 | CAP,MOTOR W/BUSHING | 1 | $57.95 | |
| 10 | 0645-289 | GEAR, ES-16T FX PRIMARY | 1 | $42.95 | |
| 11 | 0623-336 | WASHER, SPRING | 1 | $6.95 | |
| 12 | 0645-130 | SNAP RING-MOTOR GEAR | 1 | $1.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0745-107 | BRKT,MTG-ENG-LH FRONT W/BUSH | 1 | $94.95 | |
| 16 | 0645-108 | BUSHING,SHAFT-PINION (OILITE) | 1 | $19.25 | |
| 17 | 0645-127 | WASHER,THRUST-FLAT | 1 | $1.95 | |
| 18 | 0645-290 | GEAR, ES-20T FX SECONDARY | 1 | $40.95 | |
| 19 | 0645-424 | SPRING,PINION-HD ES | 1 | $6.75 | |
| 22 | 0645-218 | COVER, DUST | 1 | $29.95 | |
| 23 | 0645-107 | SLEEVE,SPACER | 1 | $26.95 | |
| 24 | 0645-126 | WASHER,PINION-WAVE | 1 | $1.19 | |
| 26 | 0623-275 | SCREW,SELF TAP-HWH 1/4-20X3/4 | 1 | $0.55 | |
| 27 | 0623-441 | R/B 1623-128 | 1 | $0.95 | |
| 28 | 0645-329 | RING GEAR,ELECTRIC START-LW | 1 | $287.95 | |
| 29 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 30 | 0645-106 | SLEEVE,ALIGNMENT-OFF SET STARTER | 1 | $1.95 | |
| 31 | 0645-217 | STOP, PINION | 1 | $94.95 | |
| 32 | 0645-125 | SNAP RING-CUP RETAINER | 1 | $3.85 | |
| 33 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 34 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 35 | 0716-344 | FOIL,6" X 4" (0619-727) | 1 | $3.71 | |
| 36 | 0745-347 | KIT,DRIVE/PINION | 1 | $286.95 | |
| 37 | 0645-285 | COMM CAP, ES MOTOR-W/ HD BRUSHES | 1 | $259.95 | |
| 38 | 0645-131 | WASHER,WAVE-ELECT START MOTOR | 1 | $3.95 | |
| 39 | 0645-293 | WASHER, THRUST-3/8" ID ES | 1 | $4.26 |
