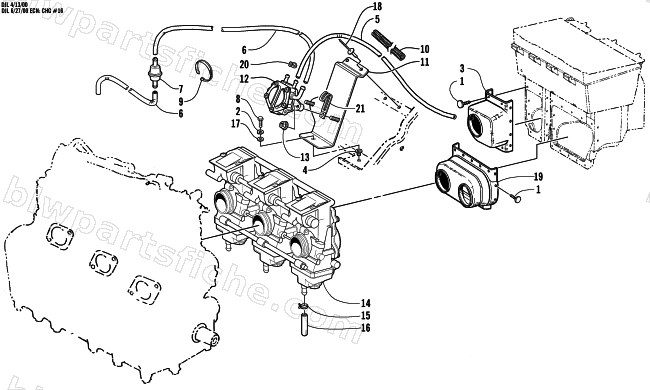

2001 Arctic Cat MOUNTAIN CAT 1000 () — CARBURETOR AND FUEL PUMP ASSEMBLY
2001 MOUNTAIN CAT 1000 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 2 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 4 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 5 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 6 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 8 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 11 | 0770-492 | PLATE, MTG,FUEL PUMP | 1 | $24.95 | |
| 13 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 14 | 1670-095 | CARB,TM-38-C289 | 1 | $1,147.95 | |
| 14 | 1670-040 | CARB,TM38-C265 | 1 | $1,823.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 1670-103 | BOOT, AIR SILENCER | 1 | $152.95 | |
| 20 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
