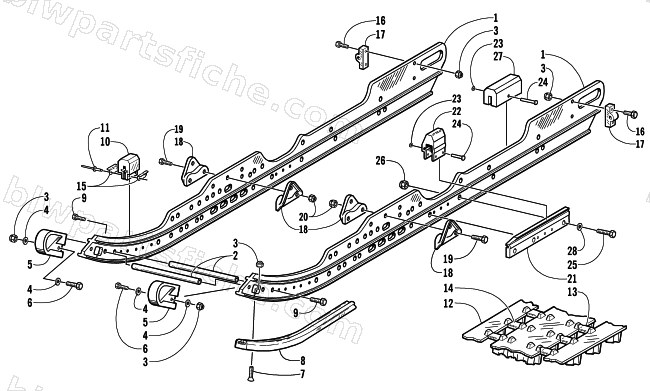

2001 Arctic Cat MOUNTAIN CAT 1000 — SLIDE RAIL AND TRACK ASSEMBLY
2001 MOUNTAIN CAT 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-535 | RAIL, (1604-646) PAINTED,GREEN - 144" | 1 | $274.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 9 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 1602-137 | TRACK, 15X144"X2" 3/5-12,B(80/60DURO) | 1 | $1,441.95 | |
| 13 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 14 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 18 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 0704-520 | BRACE,RAIL-RH-GRN | 1 | $53.95 | |
| 21 | 0704-521 | BRACE,RAIL-LH-GRN | 1 | $40.95 | |
| 23 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 24 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 25 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 27 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 | |
| 28 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
