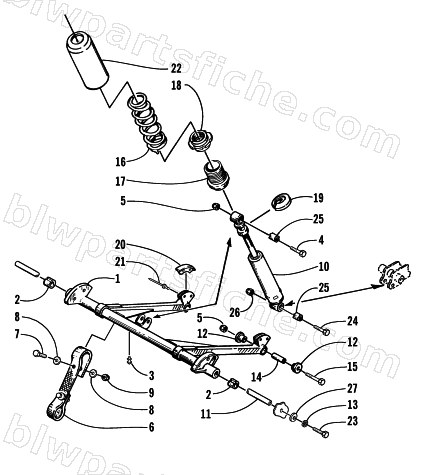

2001 Arctic Cat BEARCAT WIDE TRACK () — REAR SUSPENSION FRONT ARM ASSEMBLY
2001 BEARCAT WIDE TRACK ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-283 | ARM,FRONT-FAB | 1 | $261.95 | |
| 2 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 3 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 4 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 0604-579 | STRAP,LIMITER | 1 | $21.95 | |
| 7 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0603-117 | SHOCK ABSORBER-FRONT | 1 | $152.95 | |
| 11 | 0604-948 | AXLE,INNER .625 X 20.81 | 1 | $81.95 | |
| 12 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 14 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 15 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 16 | 0604-587 | SPRING,COMPRESSION-FRONT ARM-PTD BLK | 1 | $65.95 | |
| 17 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 18 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 19 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 20 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 21 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 22 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 23 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 24 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 25 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 26 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 27 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
