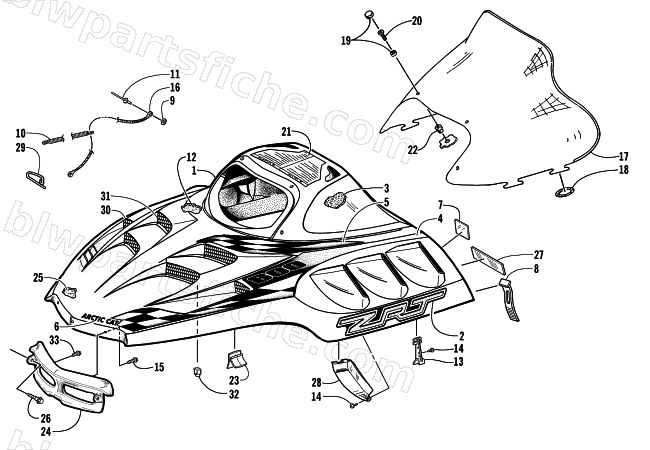

2000 Arctic Cat ZRT 800 () — HOOD AND WINDSHIELD ASSEMBLY
2000 ZRT 800 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-953 | HOOD, W/O DECAL - 01 TC1000 | 1 | $1,652.95 | |
| 1 | 0718-844 | HOOD W/DECALS-BLK-00 ZRT 800 | 1 | $2,419.95 | |
| 1 | 0718-850 | HOOD, W/O DECAL-00 TRPL(GRN) | 1 | $1,652.95 | |
| 1 | 0718-845 | HOOD, W/, DECAL,'00 ZRT 800 (GRN) | 1 | $1,870.95 | |
| 2 | 3611-460 | DECAL, HOOD "ZRT" | 1 | $88.95 | |
| 2 | 3611-708 | DECAL,HOOD LOWER-RH | 1 | $86.95 | |
| 3 | 0717-112 | FOAM, HOOD-UPR RH | 1 | $16.95 | |
| 3 | 0717-113 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 4 | 3611-464 | DECAL, HOOD-UPPER RH-800 | 1 | $79.95 | |
| 4 | 3611-465 | DECAL, HOOD-UPPER LH-800 | 1 | $79.95 | |
| 4 | 3611-706 | DECAL,HOOD UPPER-RH | 1 | $114.95 | |
| 4 | 3611-707 | DECAL,HOOD UPPER-LH | 1 | $104.95 | |
| 5 | 3611-574 | DECAL, HOOD-UPPER RH | 1 | $62.95 | |
| 5 | 3611-575 | DECAL, HOOD-UPPER LH | 1 | $66.95 | |
| 5 | 3611-710 | DECAL,HOOD UPPER TOP-RH | 1 | $69.95 | |
| 5 | 3611-711 | DECAL,HOOD UPPER TOP-LH | 1 | $69.95 | |
| 6 | 3611-455 | DECAL, ARCTIC CAT-CAT GREEN (STRAIGHT) | 1 | $11.95 | |
| 6 | 3611-744 | DECAL, ARCTIC, CAT,(BLACK) | 1 | $14.95 | |
| 7 | 3611-362 | DECAL, CAUTION - FUEL (ENG & FRCH) | 1 | $18.95 | |
| 8 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 9 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 10 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 0717-136 | FOAM,HOOD-RH | 1 | $18.95 | |
| 12 | 0717-137 | FOAM,HOOD-LH | 1 | $15.95 | |
| 13 | 1606-321 | GUIDE, HOOD | 1 | $3.44 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-790 | SCREW, HI-LO #10 X 1.00 HWH | 1 | $0.85 | |
| 16 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 17 | 1606-323 | WINDSHIELD - FORMED | 1 | $148.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 3611-360 | DECAL, WARNING-GENL & BRAKE | 1 | $162.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 1606-622 | GUIDE, HOOD (FRONT) | 1 | $2.95 | |
| 24 | 1606-324 | HINGE, HOOD | 1 | $82.95 | |
| 25 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 27 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 28 | 1606-633 | PLUG,VENT-LH | 1 | $2.95 | |
| 29 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 30 | 1606-580 | SCREEN, VENT - HOOD - RH- BLK '99 | 1 | $19.95 | |
| 30 | 1606-581 | SCREEN, VENT - HOOD - LH- BLK '99 | 1 | $19.95 | |
| 31 | 1606-584 | SCREEN, VENT - HOOD - CTR/R.H. - BLK '99 | 1 | $19.95 | |
| 31 | 1606-607 | SCREEN, VENT - HOOD -CTR/L.H.- BLK | 1 | $52.95 | |
| 32 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 33 | 0623-791 | SCREW, HI-LO #10 X 0.75 HWH | 1 | $0.55 |
