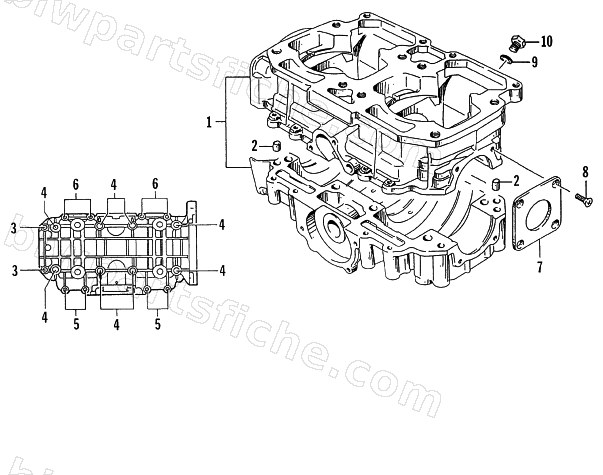

CRANKCASE ASSEMBLY
2000 ZR 700 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-482 | CRANKCASE ASSY, 700 L/C | 1 | $1,227.95 | |
| 2 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 3 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 4 | 3005-411 | BOLT, 10X85 | 1 | $13.73 | |
| 5 | 3423-367 | BOLT, 6X50 | 1 | $1.95 | |
| 6 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 7 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 | |
| 8 | 3007-392 | BOLT | 1 | $3.95 | |
| 9 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 10 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 |
