2000 Arctic Cat ZR 600 EFI — ELECTRICAL
2000 ZR 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

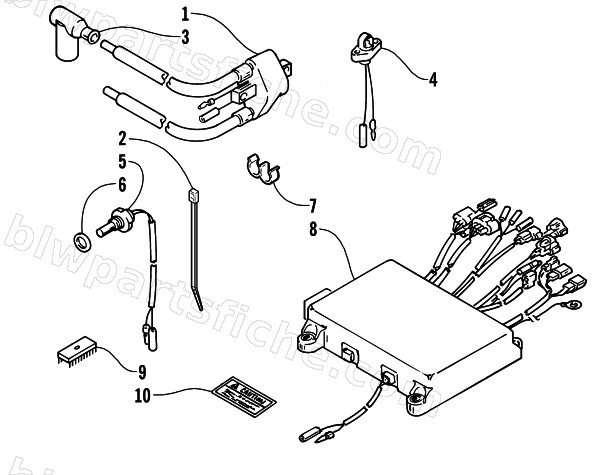

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-381 | COIL ASSY, IGNITION | 1 | $244.95 | |
| 2 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 7 | 3005-387 | CLIP | 1 | $4.40 | |
| 8 | 3005-582 | ECU, 2000 KEFI 600 - CIRICLE | 1 | $1,400.95 | |
| 8 | 3005-583 | ECU, 2000 KEFI 600 - SQUARE | 1 | $1,990.95 | |
| 8 | 3005-584 | ECU, 2000 KEFI 600 - TRIANGLE | 1 | $1,330.79 | |
| 9 | 3005-672 | EPROM,600 KEFI GAS-CIRCLE 2000 | 1 | $154.95 | |
| 9 | 3005-673 | EPROM,600 KEFI GAS-SQUARE 2000 | 1 | $152.95 | |
| 9 | 3005-674 | EPROM,600 KEFI GAS-TRIANGLE 2000 | 1 | $154.95 | |
| 10 | 2611-755 | DECAL,CAUTION-HOT SURFACE | 1 | $17.95 |
