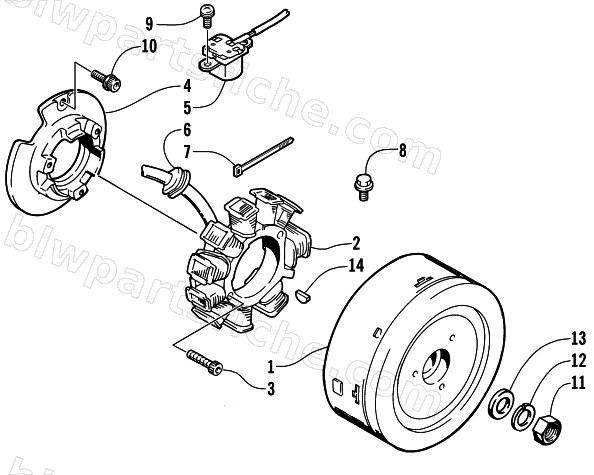

MAGNETO
2000 ZR 600 EFI - LE REVERSE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-698 | ROTOR ASSY | 1 | $1,269.95 | |
| 2 | 3005-699 | STATOR ASSY- 600 x 2 EFI | 1 | $1,030.95 | |
| 3 | 3007-450 | BOLT | 1 | $3.85 | |
| 4 | 3005-487 | BASE, STATOR | 1 | $143.95 | |
| 5 | 3004-073 | SENSOR, IGN TIMING | 1 | $238.95 | |
| 6 | 3005-511 | GROMMET,MAGNETO LEAD WIRE | 1 | $18.95 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 9 | 3007-553 | SCREW | 1 | $2.33 | |
| 10 | 3007-449 | BOLT | 1 | $3.16 | |
| 11 | 3007-556 | NUT | 1 | $3.95 | |
| 12 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 13 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 14 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
