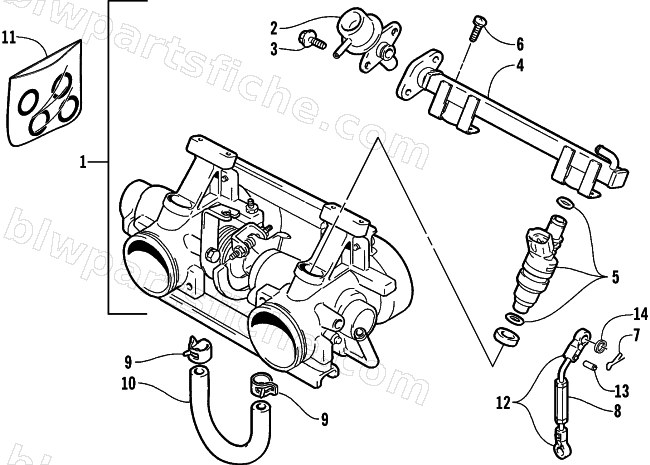

THROTTLE BODY ASSEMBLY
2000 ZR 600 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-678 | BODY, THROTTLE,- ASSY (CIRCLE) | 1 | $1,668.59 | |
| 1 | 3005-679 | BODY, THROTTLE,-ASSY (SQUARE) | 1 | $3,753.95 | |
| 1 | 3005-680 | BODY, THROTTLE,-ASSY (TRIANGLE) | 1 | $2,995.95 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-691 | PIPE,DELIVERY | 1 | $752.95 | |
| 5 | 3005-705 | INJECTOR ASSY,FUEL(CIRCLE) | 1 | $666.95 | |
| 5 | 3005-690 | INJECTOR ASSY,FUEL(SQUARE) | 1 | $720.95 | |
| 5 | 3005-706 | INJECTOR ASSY,FUEL(TRIANGLE) | 1 | $589.95 | |
| 7 | 3005-694 | PIN,CLIP | 1 | $5.37 | |
| 8 | 3005-693 | ROD,OIL PUMP CONTROL | 1 | $96.95 | |
| 9 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 10 | 3005-103 | HOSE, WATER | 1 | $68.95 | |
| 11 | 3005-692 | O-RING SET | 1 | $118.95 |
