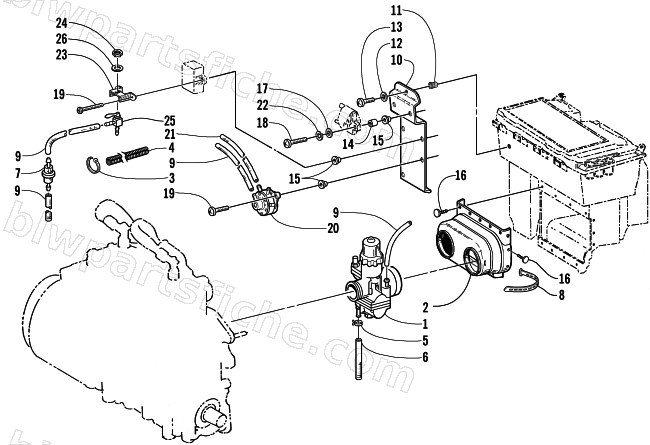

2000 Arctic Cat ZR 500 — CARBURETOR AND FUEL PUMP ASSEMBLY
2000 ZR 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-436 | CARB,VM38 SS TYPE W/SWITCH | 1 | $570.95 | |
| 2 | 1670-187 | BOOT,AIR SILENCER - CARB | 1 | $145.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 6 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0670-970 | STRAP, CARBURETOR BOOT | 1 | $7.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0770-310 | PLATE,MTG-FAB(ENG COMPONENTS) | 1 | $29.95 | |
| 11 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 12 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 13 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 16 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 19 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 20 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 26 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 |
