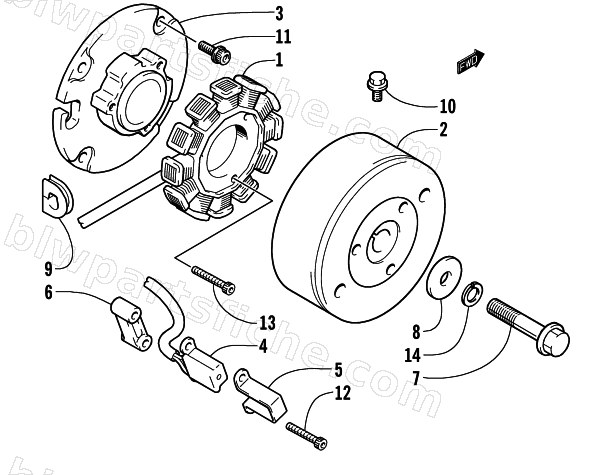

2000 Arctic Cat ZR 440 SNO PRO — MAGNETO
2000 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-784 | STATOR (440L/C SNO PRO/ 800 X 2 APV ) | 1 | $883.95 | |
| 2 | 3005-728 | FLYWHEEL ASSY | 1 | $1,153.95 | |
| 3 | 3005-729 | BASE, STATOR | 1 | $126.95 | |
| 4 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 5 | 3003-972 | CLAMP | 1 | $24.77 | |
| 6 | 3005-731 | SPACER, PULSER COIL | 1 | $53.95 | |
| 7 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 8 | 3008-017 | WASHER, 10.5X30X3.2 | 1 | $5.95 | |
| 9 | 3008-034 | GROMMET, LEAD WIRE,M10 | 1 | $17.87 | |
| 10 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 11 | 3007-449 | BOLT | 1 | $3.16 | |
| 12 | 3007-685 | BOLT,5X30 | 1 | $3.44 | |
| 13 | 3007-489 | BOLT | 1 | $3.16 | |
| 14 | 3007-424 | LOCK WASHER | 1 | $4.26 |
