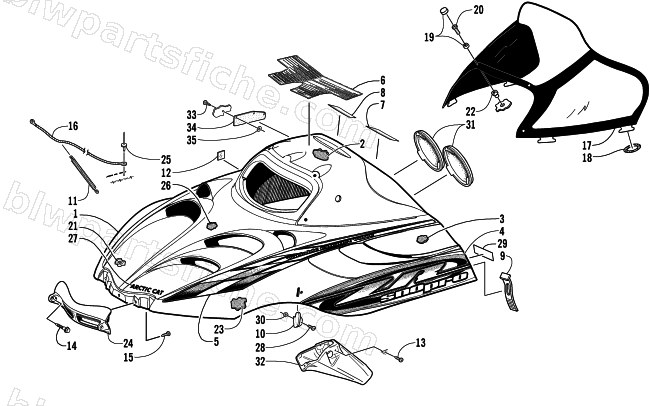

2000 Arctic Cat ZR 440 SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2000 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-870 | HOOD,W/O DECAL(PRO) | 1 | $1,056.95 | |
| 1 | 0718-871 | HOOD W/DECALS-00 SNO PRO | 1 | $1,325.95 | |
| 2 | 0617-403 | FOAM, HOOD,REAR | 1 | $61.95 | |
| 3 | 0617-398 | FOAM, HOOD,UPPER RH | 1 | $27.95 | |
| 3 | 0617-399 | FOAM, HOOD,UPPER LH | 1 | $27.95 | |
| 4 | 3611-760 | DECAL,HOOD-LOWER SIDE-RH | 1 | $41.95 | |
| 4 | 3611-761 | DECAL,HOOD-LOWER SIDE-LH | 1 | $41.95 | |
| 5 | 3611-762 | DECAL,HOOD-UPPER SIDE-RH | 1 | $57.95 | |
| 5 | 3611-763 | DECAL,HOOD-UPPER SIDE-LH | 1 | $56.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 3611-486 | DECAL,CAUTION-ENGINE & BATTERY-ENGLISH | 1 | $12.95 | |
| 8 | 3611-487 | DECAL,CAUTION-ENGINE & BATTERY-FRENCH | 1 | $13.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 10 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 11 | 0623-199 | SPRING,EXTENSION | 1 | $6.47 | |
| 12 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 13 | 0623-789 | SCREW,SELF TAP-HWH #6X1/2 TYP A Z&Y | 1 | $0.25 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 2606-077 | CABLE, HOOD,29" | 1 | $14.95 | |
| 17 | 1606-996 | WINDSHIELD, FORMED | 1 | $149.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0617-400 | FOAM,HOOD-REAR RH | 1 | $50.95 | |
| 23 | 0617-401 | FOAM,HOOD-REAR LH | 1 | $50.95 | |
| 24 | 1706-178 | HINGE,HOOD-ROUTED | 1 | $54.95 | |
| 25 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 26 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 27 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 28 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 | |
| 29 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 30 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 31 | 2606-069 | PLUG, GAUGE HOLE | 1 | $5.37 | |
| 32 | 2606-011 | DUCT,BRAKE-HOOD | 1 | $72.95 | |
| 33 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 34 | 2606-137 | INTAKE, AIR,CLOSEOFF | 1 | $12.35 | |
| 35 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 |
