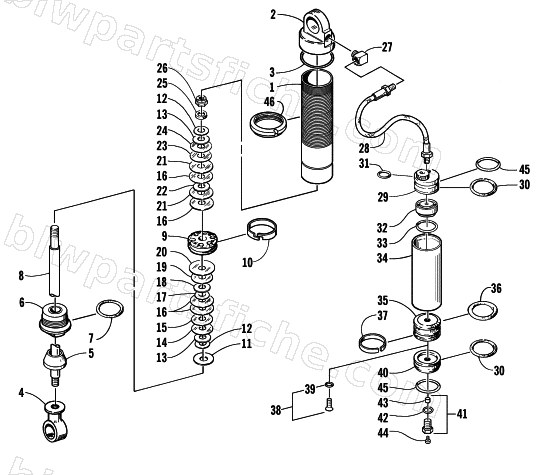

2000 Arctic Cat ZR 2K — FRONT SUSPENSION SHOCK ABSORBER
2000 ZR 2K
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1603-341 | SHOCK,SKI-CLICKER (ZR 600 B) | 1 | $1,140.95 | |
| 0 | 1639-771 | REBUILD KIT, A/C SHOCK ("CLICKER" SHOCK) | 1 | $74.95 | |
| 1 | 1603-359 | BODY,SHOCK-7.330 TLG (FOX),GROOVED | 1 | $140.95 | |
| 2 | 1603-234 | END CAP, SHOCK | 1 | $193.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0603-920 | EYELET,1.012 x 1.637 x 2.26 | 1 | $98.95 | |
| 5 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 6 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 7 | 1604-420 | O-RING | 1 | $4.95 | |
| 8 | 0603-961 | ROD, SHOCK - 8.500 (RB 2603-320) | 1 | $53.95 | |
| 9 | 0604-741 | PISTON, .093 ORFICE | 1 | $121.95 | |
| 10 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 11 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 13 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 14 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 15 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 16 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 17 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 18 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 19 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 20 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 21 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 22 | 0603-894 | VALVE, SHOCK .900X.004(3/8ID) | 1 | $6.95 | |
| 23 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 25 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 26 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 27 | 1603-349 | FITTING,90 DEG ELBOW - FOX | 1 | $34.95 | |
| 29 | 2603-378 | DAMPING ADJUST,COMPRESSION-ASSY-CLR | 1 | $215.95 | |
| 30 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 31 | 0603-975 | RING, .070 X .801 | 1 | $0.65 | |
| 32 | 1603-352 | PLATE, DAMPENING - ASSEMBLY - FOX | 1 | $156.95 | |
| 33 | 0603-911 | RING,RETAINING-SPIRAL | 1 | $16.49 | |
| 34 | 0603-672 | BODY, RESERVIOR-4" ALUM. (BLACK) | 1 | $371.95 | |
| 35 | 1603-354 | PISTON, FLOATING - ASSY (FOX) | 1 | $100.95 | |
| 36 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 37 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 38 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 39 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 40 | 1603-353 | ENDCAP, RESERVOIR - ASSY (FOX) | 1 | $152.95 | |
| 41 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 42 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 44 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 45 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 46 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 |
