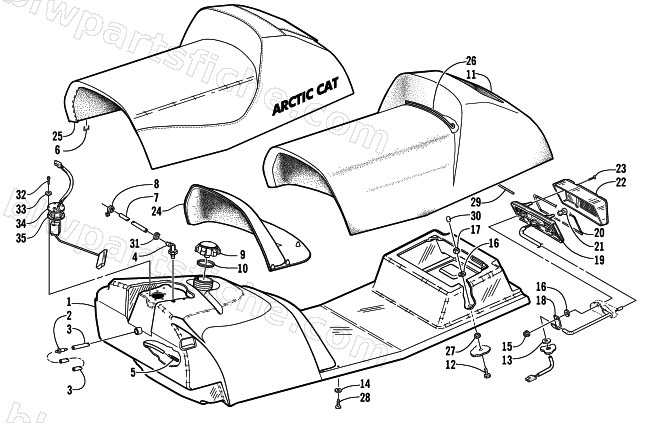

2000 Arctic Cat ZL 550 ESR — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2000 ZL 550 ESR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-807 | SEAT - ASSY, 00 ZL550 DLX | 1 | $728.95 | |
| 1 | 0770-437 | TANK, GAS - ASSY - 00 ZL550 DLX | 1 | $360.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 8 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 9 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 0716-951 | FOAM,SEAT CUSHION (POWDER SPECIAL) | 1 | $189.95 | |
| 12 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 13 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 19 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 23 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 24 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 25 | 1706-075 | COVER, SEAT W/DECAL 00 ZL500 | 1 | $450.95 | |
| 26 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 27 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 0624-312 | SCREW,MACH-HWH 10-32X.475 (SS) | 1 | $4.95 | |
| 33 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 | |
| 34 | 0620-208 | SENDER, FUEL LEVEL-10 GAL ONLY | 1 | $197.95 | |
| 35 | 0670-474 | GASKET,FUEL SENSOR-PWC | 1 | $19.95 |
