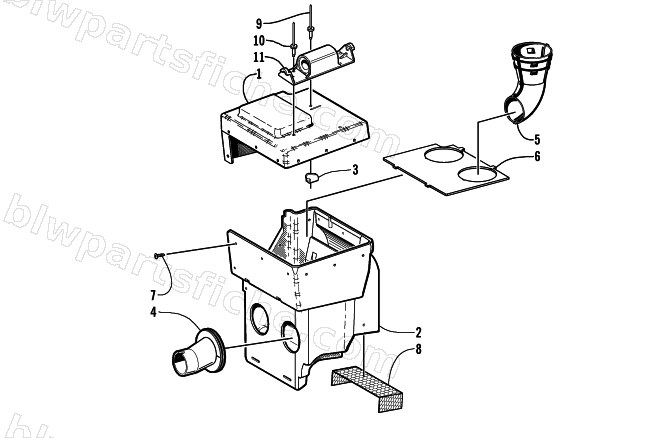

2000 Arctic Cat Z 440 SNO PRO — AIR SILENCER ASSEMBLY
2000 Z 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-022 | EXTENSION,AIR SILENCER-TOP | 1 | $185.95 | |
| 2 | 0770-382 | SILENCER,AIR MFG. 99 Z PRO | 1 | $161.95 | |
| 3 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 4 | 1670-350 | BOOT, AIR SILENCER | 1 | $27.95 | |
| 5 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 6 | 1670-033 | BAFFLE,SILENCER-UPPER | 1 | $12.35 | |
| 7 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 8 | 1606-451 | screen,AIR SILENCER-REAR ('98 440 PRO) | 1 | $17.87 | |
| 9 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 10 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 |
