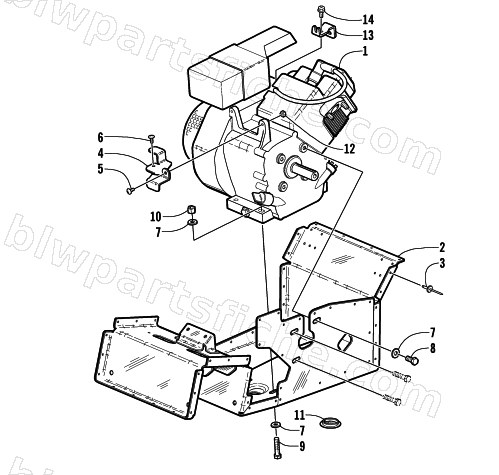

2000 Arctic Cat Z 120 — ENGINE AND RELATED PARTS
2000 Z 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-251 | ENGINE,120 4 CYCLE | 1 | $1,582.95 | |
| 2 | 1706-014 | FRONT END SUB-WELD'T | 1 | $442.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 4 | 1606-821 | COVER,GOVERNOR | 1 | $17.87 | |
| 5 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 6 | 0623-786 | SCREW,SELF TAP-TSPNH 10-24X.375 | 1 | $1.78 | |
| 7 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 8 | 8004-130 | SCREW,CAP-HH 5/16-24 X.75 G5 Z&Y | 1 | $0.68 | |
| 9 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 10 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 11 | 0623-822 | PLUG, 1-1/4" | 1 | $1.37 | |
| 12 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 13 | 0770-617 | BRKT,CHOKE/THROTTLE-PTD BLK | 1 | $45.95 | |
| 14 | 3007-389 | SCREW,ABV VSV | 1 | $3.16 |
