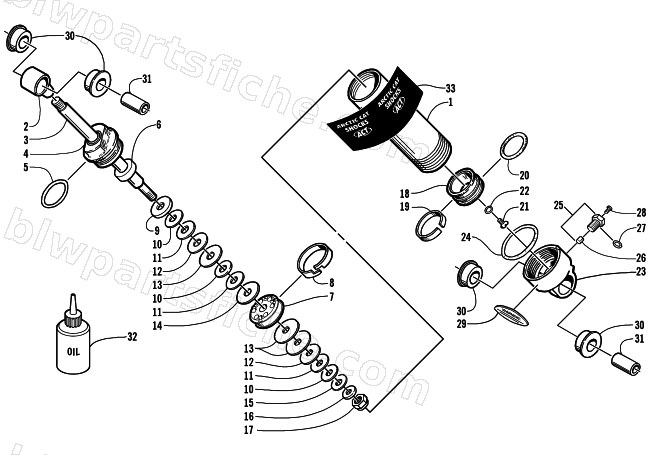

2000 Arctic Cat THUNDERCAT THC () — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2000 THUNDERCAT THC ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-469 | SHOCK, REAR ARM-ASSY (MELONITE) | 1 | $578.95 | |
| 1 | 1604-544 | BODY, SHOCK-1.625X7.330 (MELONITE) | 1 | $149.95 | |
| 2 | 1603-503 | EYELET,SHOCK - 1.000 DIA X 1.137 LGTH | 1 | $26.95 | |
| 4 | 0704-382 | END CAP, LONG - ASSY | 1 | $56.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 1604-364 | SPACER, SHAFT (.530 ID X .75 OD X .375) | 1 | $6.95 | |
| 7 | 1603-189 | PISTON,0.046 ORIFICE | 1 | $71.95 | |
| 8 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 10 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 11 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 13 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 14 | 1603-132 | VALVE,SHOCK-1.300 DIA X .006 | 1 | $4.13 | |
| 15 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 16 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 17 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 18 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 19 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 20 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 21 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 22 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 23 | 1604-294 | END CAP, SHOCK - W/LUGS | 1 | $141.95 | |
| 24 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 25 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 27 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 28 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 29 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 30 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 31 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 32 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 33 | 3611-691 | DECAL,SHOCK-"ACT" | 1 | $23.95 |
