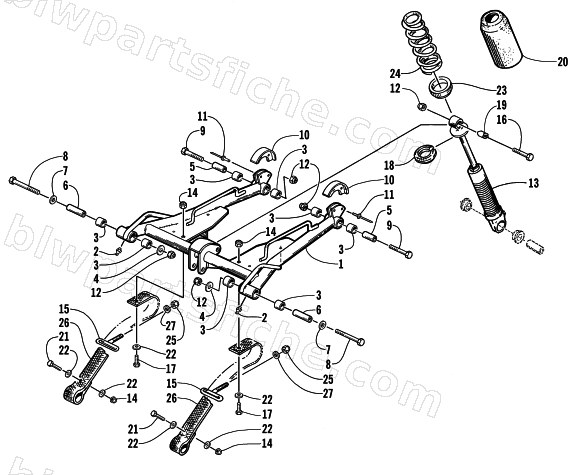

REAR SUSPENSION FRONT ARM ASSEMBLY
2000 THUNDERCAT THC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-452 | ARM,FRONT-FABR | 1 | $357.95 | |
| 2 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 7 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 8 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 9 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 10 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 11 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 0704-467 | SHOCK,FRT ARM-ASSY MELLONITE | 1 | $590.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 1604-583 | ADJUSTER,FRT ARM-Z&Y(99 PRO) | 1 | $28.95 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 19 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 20 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 23 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 24 | 0704-523 | SPRING, COMP-FRONT ARM #110 BLK | 1 | $58.95 | |
| 25 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 26 | 1604-193 | STRAP,LIMITER-1.50 WIDE | 1 | $22.01 | |
| 27 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 |
