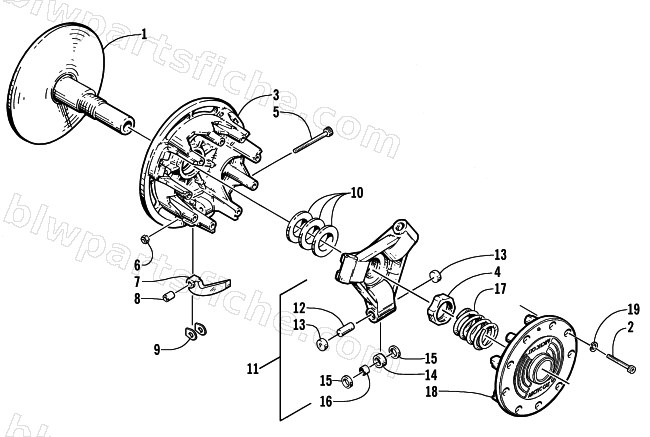

DRIVE CLUTCH
2000 THUNDERCAT THC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 2 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 0746-588 | ARM, CAM-W/ BRG 54.5 GRAM | 1 | $14.95 | |
| 7 | 0746-600 | ARM,CAM-W/ BRG-50.0 GRAMS | 1 | $14.95 | |
| 7 | 0746-608 | ARM,CAM-W/ BRG-47.5 GRAMS | 1 | $26.95 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 0646-270 | PIN, ROLLER - SPIDER | 1 | $24.95 | |
| 13 | 0646-293 | BUTTON, TORQUE-MACH | 1 | $19.25 | |
| 14 | 0746-067 | ROLLER, W/ BRG | 1 | $62.95 | |
| 15 | 0646-327 | WASHER, ROLLER - SPIDER | 1 | $17.95 | |
| 16 | 0646-272 | BEARING, ROLLER - SPIDER | 1 | $25.95 | |
| 17 | 0646-150 | SPRING,CLUTCH-SILVER | 1 | $49.95 | |
| 17 | 0646-149 | SPRING,CLUTCH-RED | 1 | $57.95 | |
| 18 | 0746-086 | COVER ASSY - DRIVE CLUTCH | 1 | $116.95 | |
| 19 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 |
