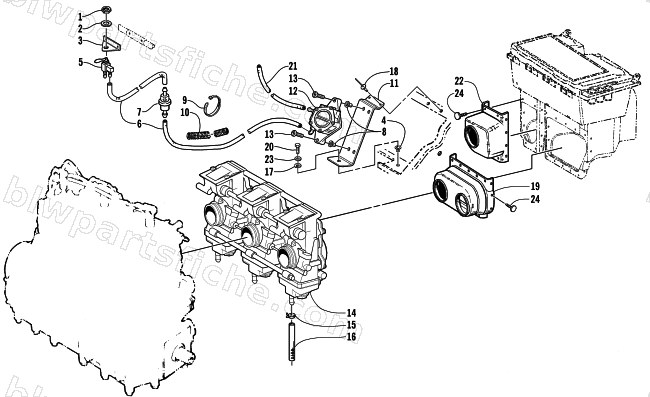

CARBURETOR AND FUEL PUMP ASSEMBLY
2000 THUNDERCAT MC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 2 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 3 | 0770-739 | BRKT,MTG-PTD BLK | 1 | $4.29 | |
| 4 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 5 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 6 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 11 | 0770-405 | BRACKET, FUEL PUMP MTG-W/INSERTS-ZRT | 1 | $61.95 | |
| 12 | 1670-087 | PUMP, FUEL (800/1000) DF62-721 | 1 | $133.95 | |
| 13 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 14 | 1670-095 | CARB,TM-38-C289 | 1 | $1,147.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 1670-103 | BOOT, AIR SILENCER | 1 | $152.95 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 |
