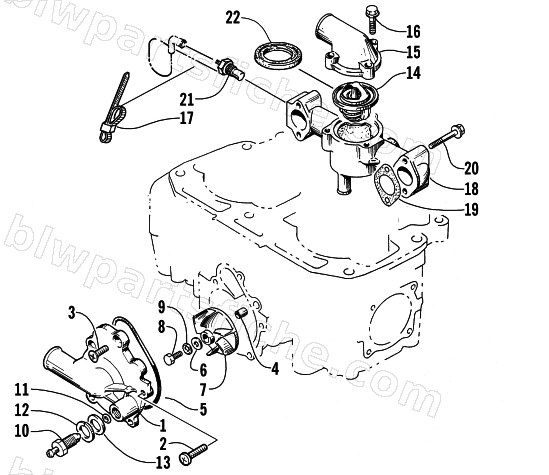

2000 Arctic Cat POWDER SPECIAL 700 LE () — WATER PUMP AND THERMOSTAT
2000 POWDER SPECIAL 700 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-519 | CASE, WATER PUMP | 1 | $283.95 | |
| 2 | 3007-555 | SCREW | 1 | $2.47 | |
| 3 | 3007-440 | SCREW | 1 | $2.06 | |
| 4 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 5 | 3003-372 | GASKET,O-RING PUMP | 1 | $17.87 | |
| 6 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 7 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 8 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 9 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 10 | 3003-618 | DRAIN,WATER | 1 | $47.95 | |
| 11 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 12 | 3004-472 | WASHER, LOCK,12MM | 1 | $3.85 | |
| 13 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 14 | 3004-964 | THERMOSTAT, WATER | 1 | $106.95 | |
| 15 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 16 | 3007-380 | BOLT | 1 | $3.16 | |
| 17 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 18 | 3005-486 | MANIFOLD, THERMOSTAT | 1 | $593.95 | |
| 19 | 3004-260 | GASKET, THERMOSTAT MANIFOLD | 1 | $17.87 | |
| 20 | 3007-411 | BOLT | 1 | $3.16 | |
| 21 | 0720-011 | SENSOR, HEAT- L/C | 1 | $60.95 | |
| 22 | 3003-495 | GASKET,THERMOSTAT | 1 | $15.11 |
