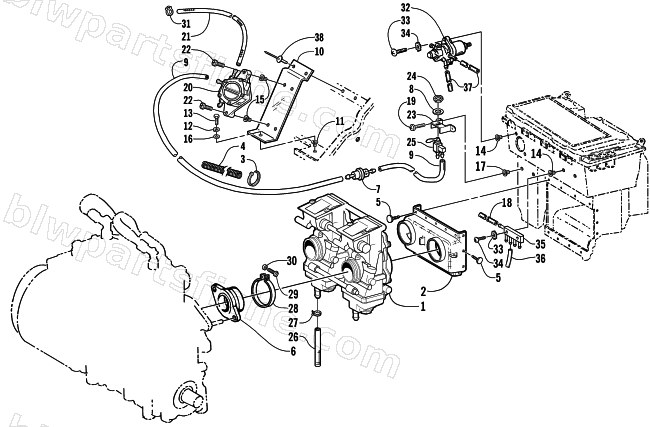

2000 Arctic Cat POWDER SPECIAL 700 LE () — CARBURETOR AND FUEL PUMP ASSEMBLY
2000 POWDER SPECIAL 700 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-089 | CARB,TM40-B55-RACK W/MAC (20 PS 700) | 1 | $1,268.95 | |
| 2 | 1670-359 | BOOT, AIR SILENCER | 1 | $86.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 6 | 0670-992 | FLANGE, CARB - TM 38-40 MM | 1 | $79.95 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0770-405 | BRACKET, FUEL PUMP MTG-W/INSERTS-ZRT | 1 | $61.95 | |
| 11 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 12 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 13 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 14 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 15 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 18 | 0610-331 | HOSE, VACUUM-12.00 LG W/CLAMPS | 1 | $9.59 | |
| 19 | 0623-836 | SCREW,MACH-PHPNH-10-32X1/2 W/SEMS L | 1 | $0.25 | |
| 20 | 1670-064 | PUMP, FUEL (DF62-719) | 1 | $62.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 26 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 27 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 28 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 29 | 6505-819 | SCREW,5X25 | 1 | $1.95 | |
| 30 | 0670-209 | SPACER,CLAMP- 8 MM | 1 | $3.95 | |
| 31 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 32 | 1670-109 | COMPENSATOR, PRESSURE (HAC 67) | 1 | $434.95 | |
| 33 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 34 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 35 | 1670-108 | MANIFOLD, PRESSURE COMPENSATOR | 1 | $113.95 | |
| 36 | 0610-329 | HOSE, VACUUM-4.92 LG W/CLAMPS | 1 | $2.88 | |
| 36 | 0610-330 | HOSE, VACUUM-9.00 LG W/CLAMPS | 1 | $4.95 | |
| 36 | 0610-352 | HOSE,VACUUM-7.48 LG W/CLAMPS | 1 | $11.95 | |
| 38 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
